Mini PC Q10900XP S04 Series

Model: Q10900XP-S04

Total LAN2
LAN Speed2.5G RJ45
Serial Ports6

With Alder Lake-N and Twin Lake industrial Mini PC with 6 serial ports, 2×2.5G LAN and DDR5 up to 48GB, Q10900XP-S04 targets installations where serial connectivity matters. The platform also includes processors such as N100 and N305 together with M.2 and SATA expansion, it is. Typical applications include PLC communication, machine monitoring and serial-device management.

Key Specs

CPU
Alder lake N / Twin Lake
Memory
DDR5 SO-DIMM · Max 48GB
LAN
2
Storage
M.2 Mkey, SATA

Compatible Motherboard

MB3J267-0900
MB3J267-0900
Send Inquiry Buy Now
Q10911XPQ10921XPQ10922XPQ10923XPQ10924XPQ10931XPQ10932XPQ11022XPQ11023XPQ11031XPQ11032XPIntelAlder Lake-NTwin LakePentiumCeleronATOMX7425EN50N97N100N200N300N305N150N250N350N355

Main Features

  • Intel Alder Lake-N Processor

  • Intel Twin Lake-N Processor

  • 2 × HDMI

  • 1 × USB 3.0, 7 × USB 2.0, 6 × RS-232

  • 3 × M.2, 1 × SATA 3.0

  • 2 × Realtek 2.5G LAN

Processor System

CPUIntel Alder Lake-N Processor Intel Twin Lake-N Processor
CPU TDPBy CPU
Memory1 × DDR5 SO-DIMM Socket (Up to 48G)
ChipsetBy CPU
GraphicsBy CPU
AudioRealtek HD Audio
Watch DogYes

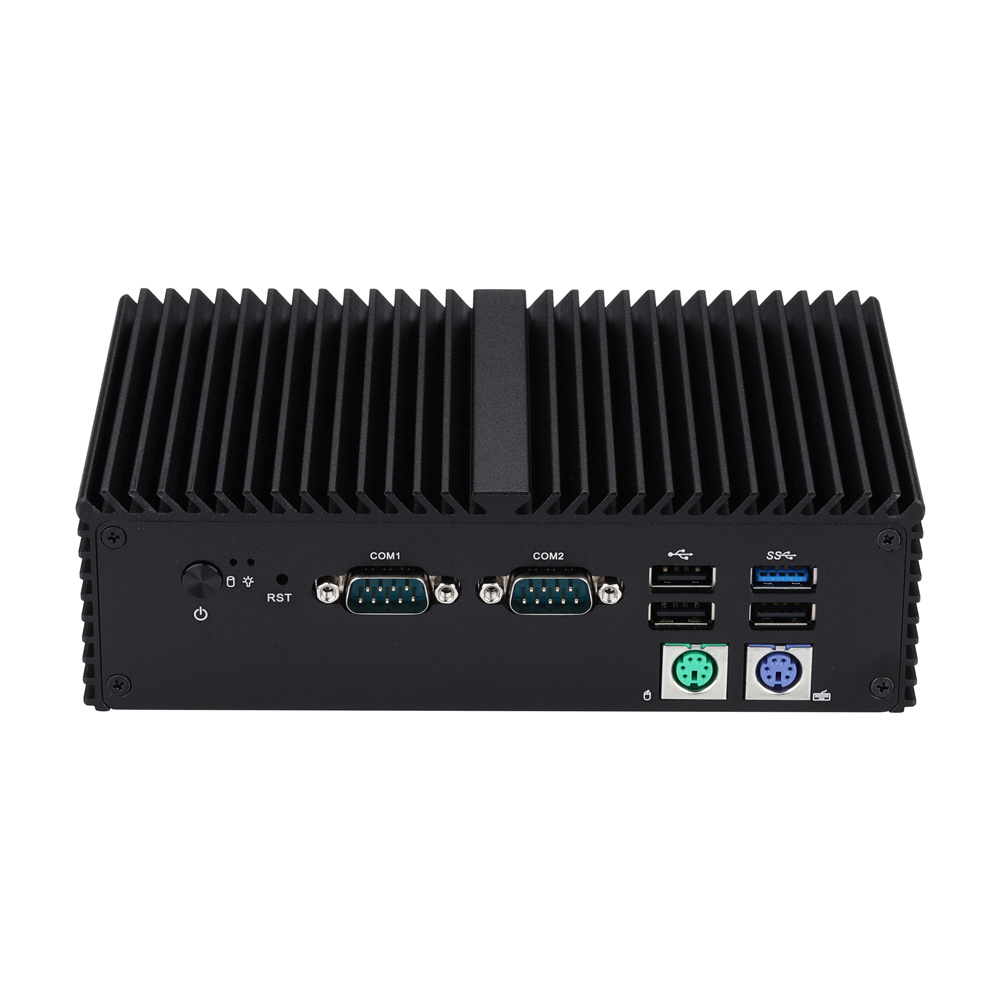

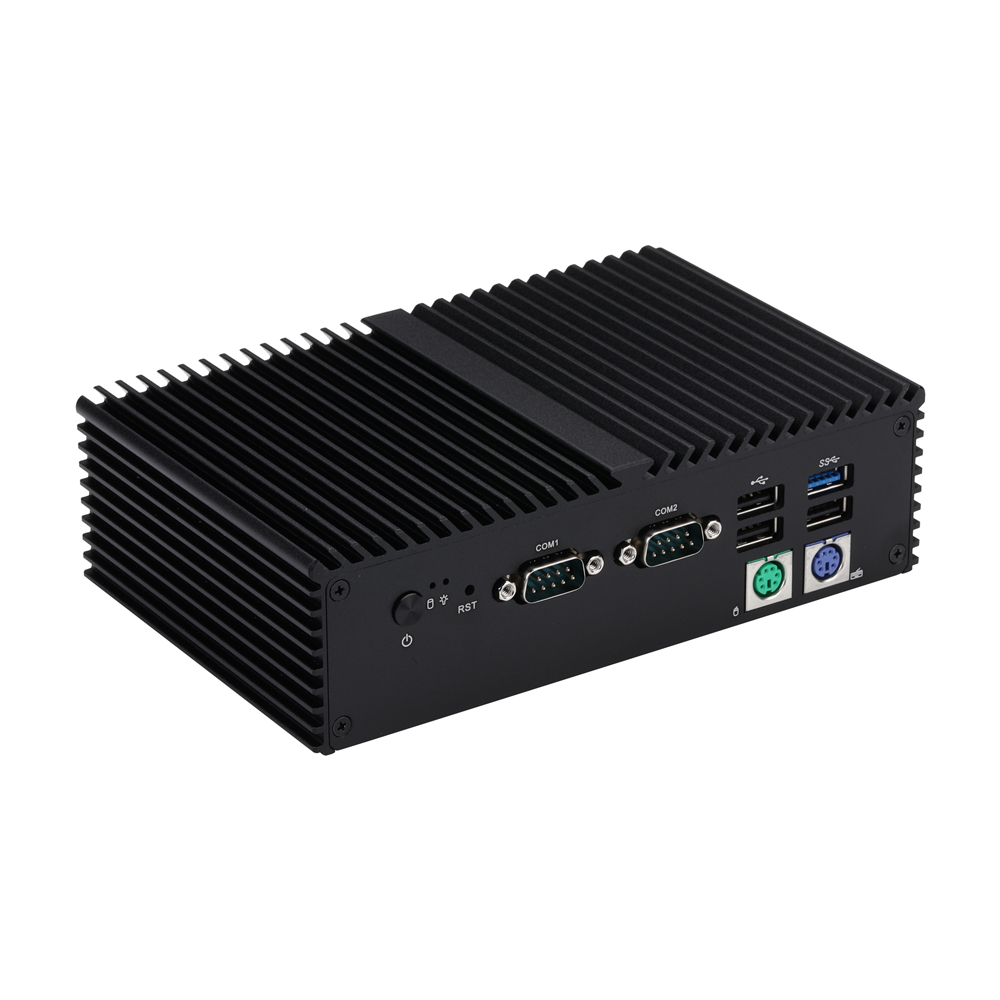

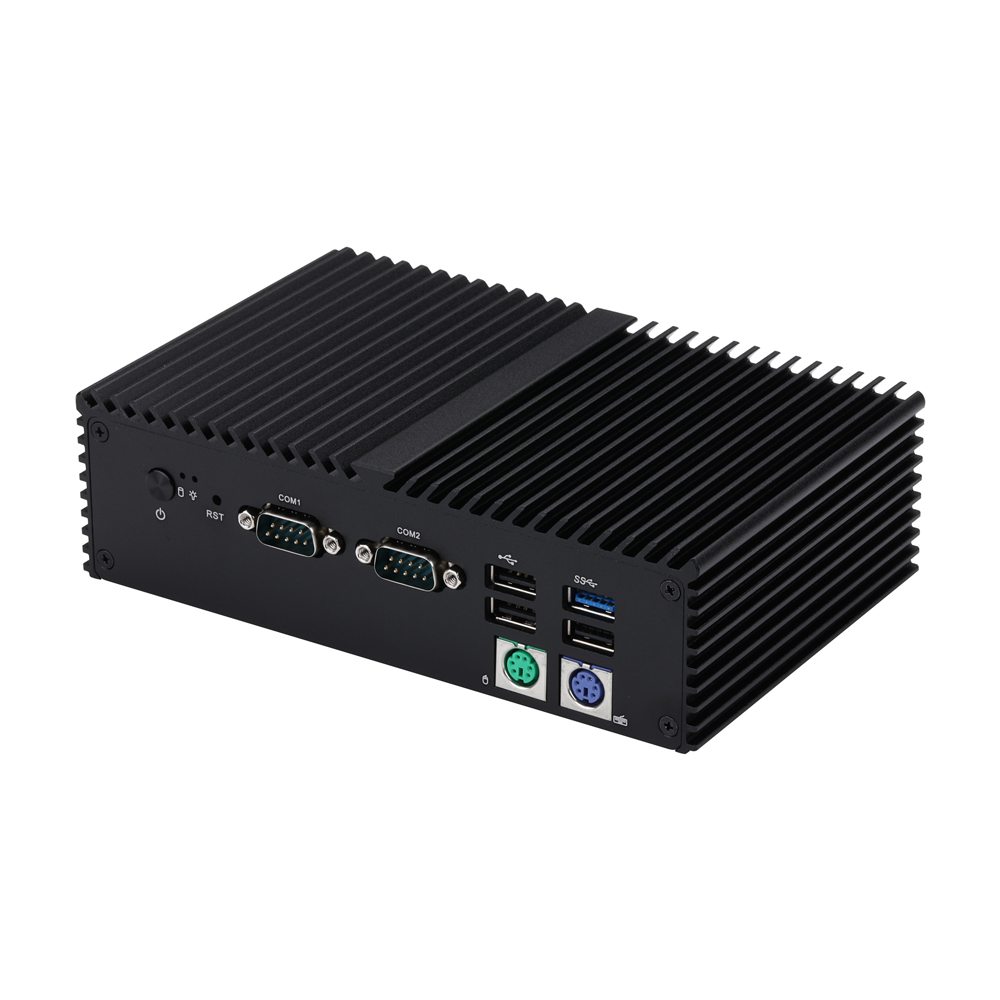

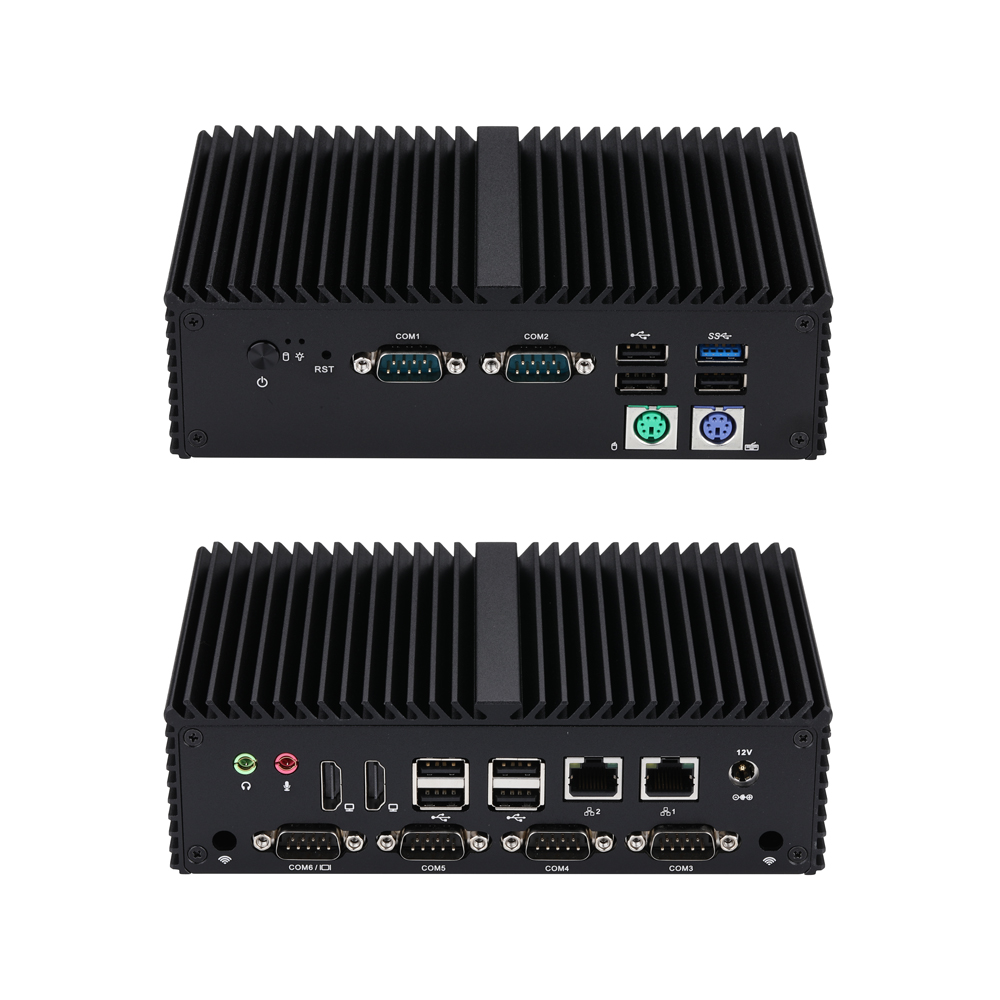

Front I/O

Power Button1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB3 × USB 2.0, 1 × USB 3.0
Serial Port2 × RS-232 (COM1/2 can be set up as RS-485)
PS/22
GPIO0

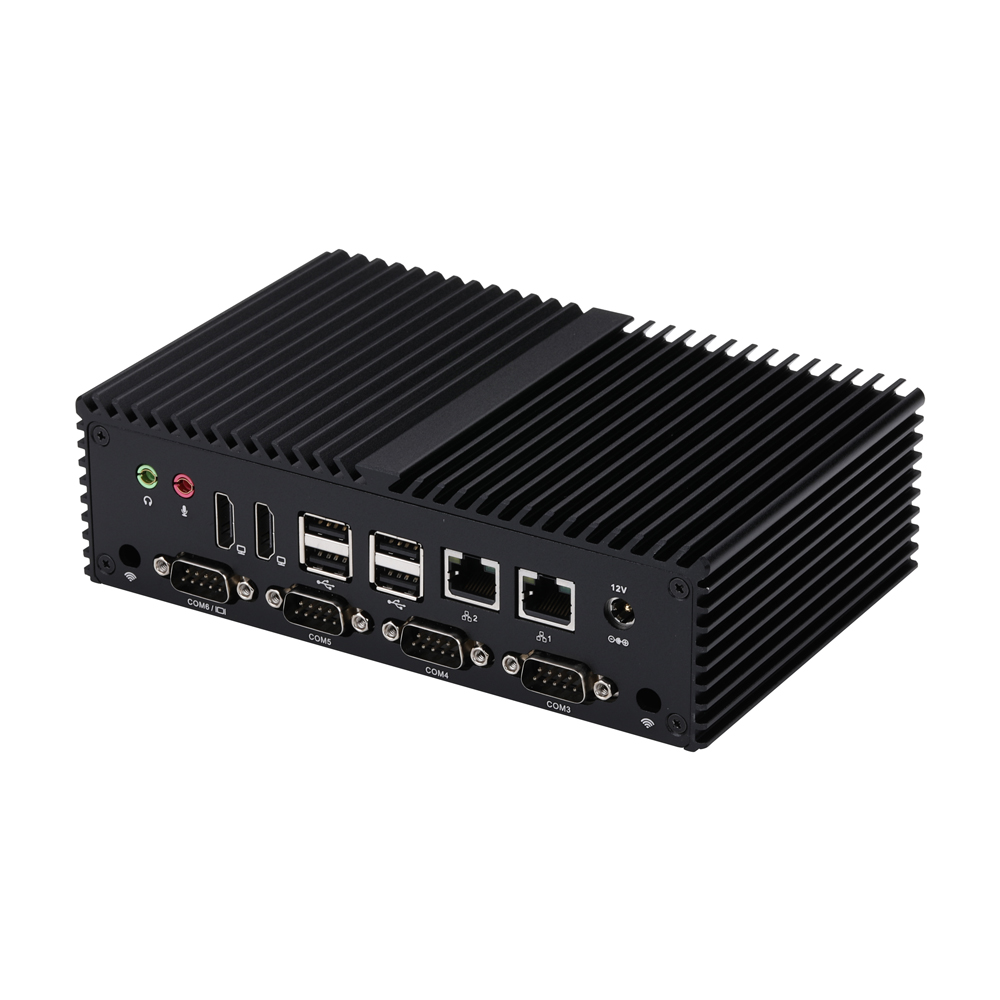

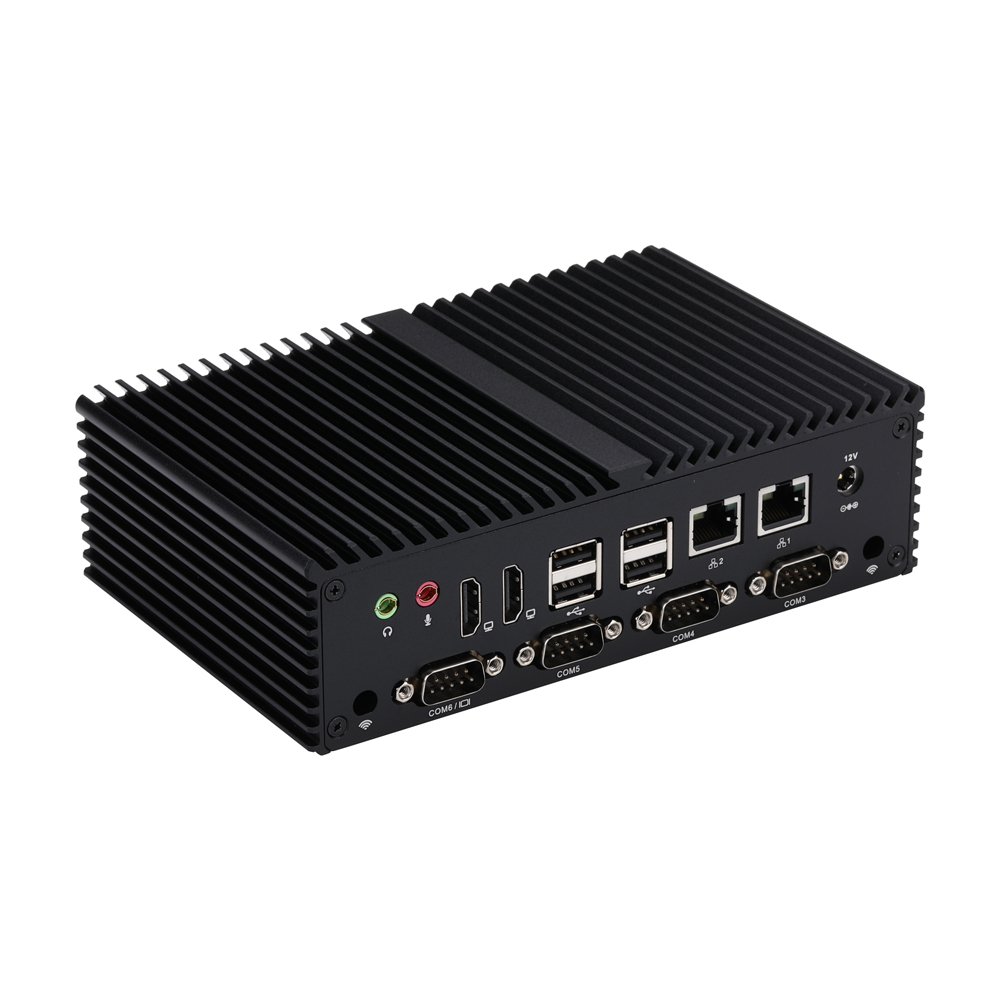

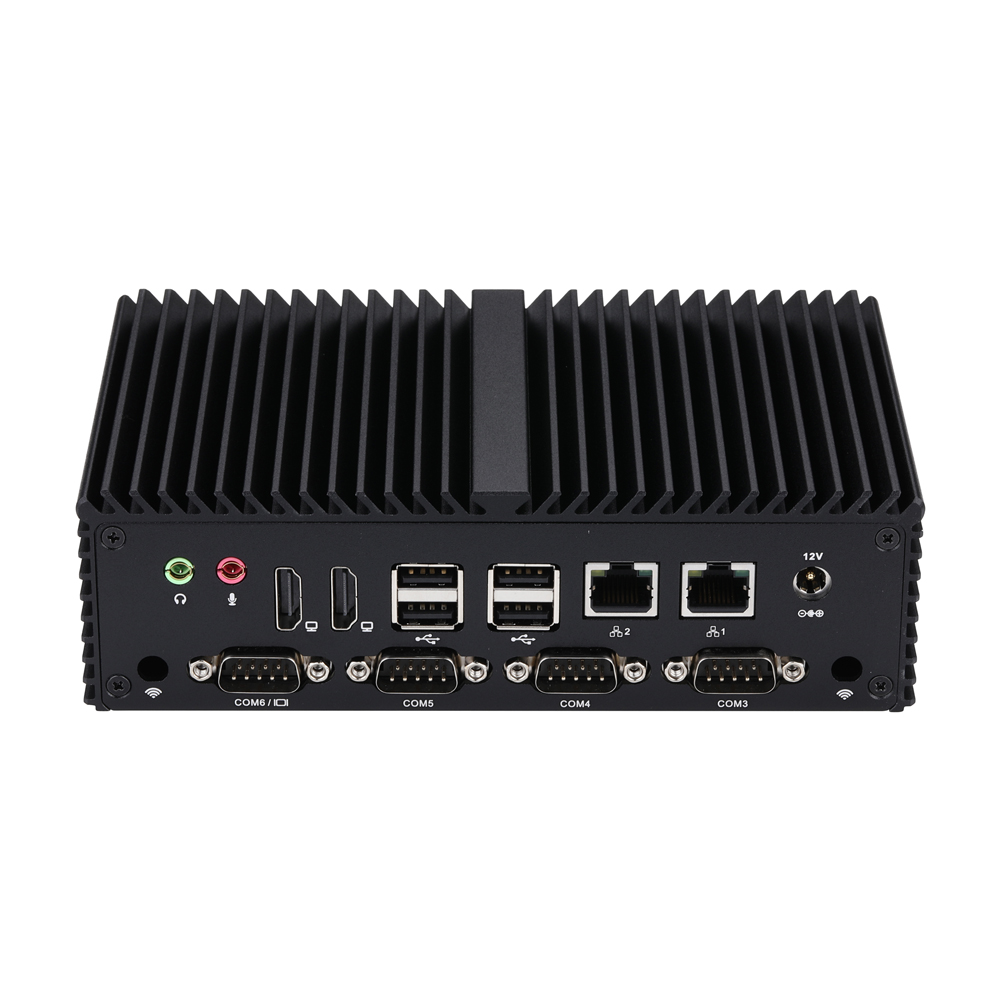

Rear I/O

Power1 × DC Jack
LAN2 × Realtek 2.5G LAN
USB4 × USB 2.0
Audio1 × Mic-in,1 × Line-out
Display2 × HDMI
Serial Port4 × RS-232

Storage

Type1 × 2.5-inch HDD/SSD
Type1 × M.2 for SSD (M key, Type:2280,PCIe 3.0 × 2)

Expansion

M.21 × M.2 for SSD (M key, Type:2280,PCIe 3.0 × 2)
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot1
AutoStart JumperYes,1 × 3Pin, Pitch 2.54mm
GPIO1,2 × 5Pin, Pitch 2.0mm
VGA0
Serial Port0
Clear CMOS JumperYes,1 × 3Pin, Pitch 2.54mm
Front Panel Header1, 2 × 5Pin, Pitch 2.0mm

Power

Power Adapter12V3A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension178 × 111 × 52mm
Weight0.86kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSUEFI Windows 10, UEFI Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q10911XP-S04 A lder lake-N - N50 2 / - 3.4GHz 6M Intel UHD Graphics 6W
Q10921XP-S04 Alder lake-N - N97 4 / - 3.6GHz 6M Intel UHD Graphics 12W
Q10922XP-S04 Alder lake-N - N100 4 / 4 3.4GHz 6M Intel UHD Graphics 6W
Q10923XP-S04 Alder lake-N - N200 4 / 4 3.7GHz 6M Intel UHD Graphics 6W
Q10924XP-S04 Alder lake-N Atom X7425E 4 / 4 3.4GHz 6M Intel UHD Graphics 12W
Q10931XP-S04 Alder lake-N Core i3 N300 8 / 8 3.8GHz 6M Intel UHD Graphics 7W
Q10932XP-S04 Alder lake-N Core i3 N305 8 / 8 3.8GHz 6M Intel UHD Graphics 15W
Q11022XP-S04 Twin Lake-N - N150 4 / 4 3.6GHz 6M Intel Graphics 6W
Q11023XP-S04 Twin Lake-N - N250 4 / 4 3.8GHz 6M Intel Graphics 6W
Q11031XP-S04 Twin Lake-N Core i3 N350 8 / 8 3.9GHz 6M Intel Graphics 7W
Q11032XP-S04 Twin Lake-N Core i3 N355 8 / 8 3.9GHz 6M Intel Graphics 15W
