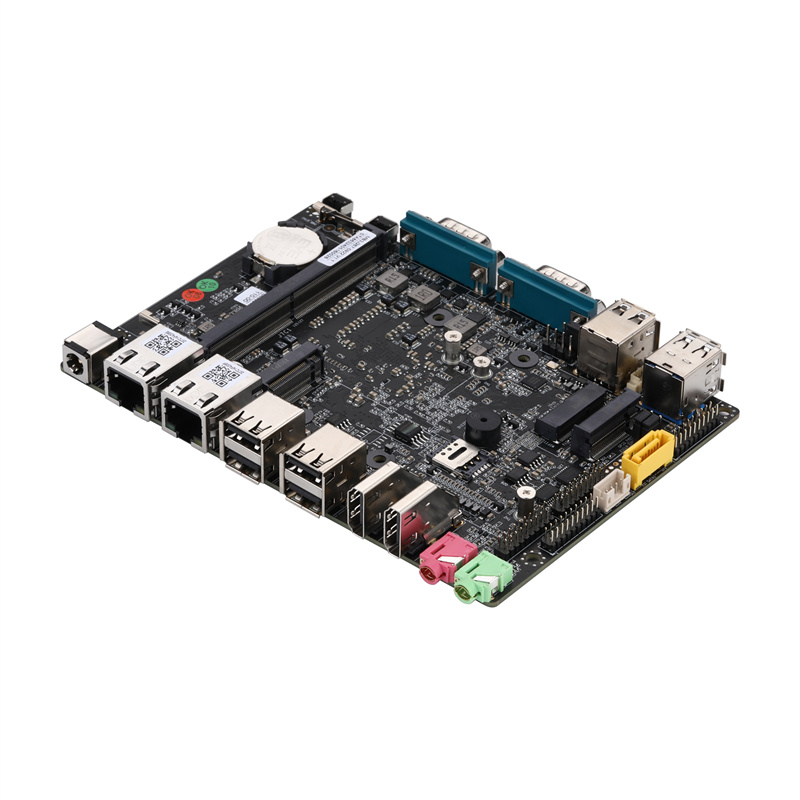

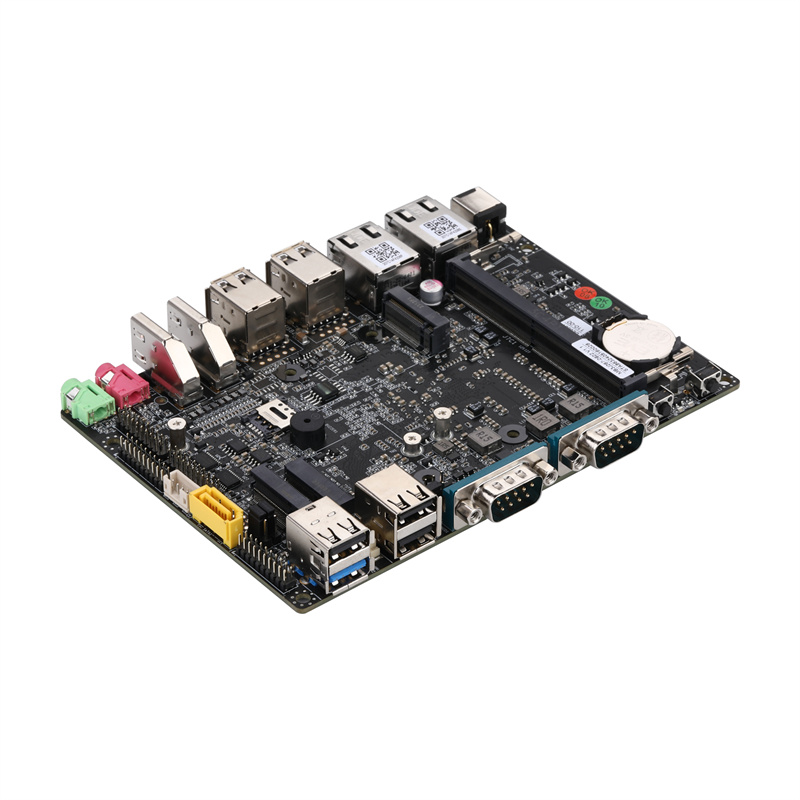

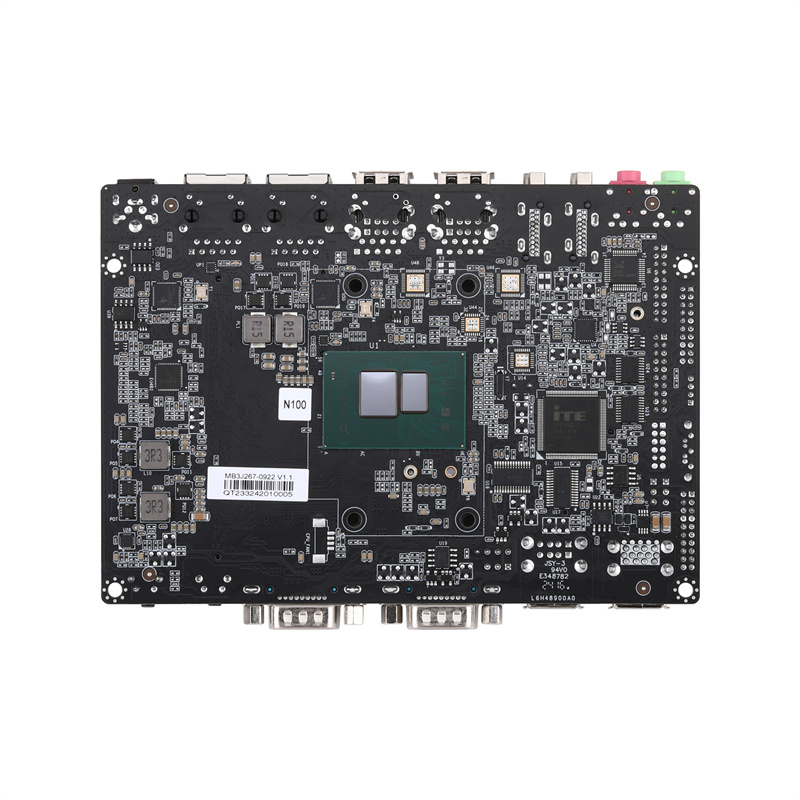

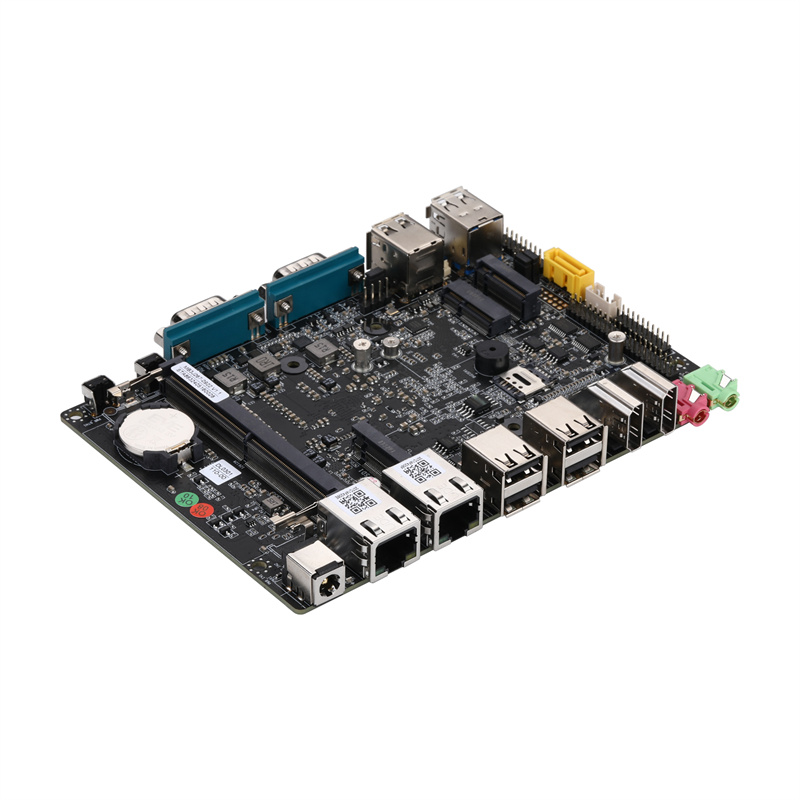

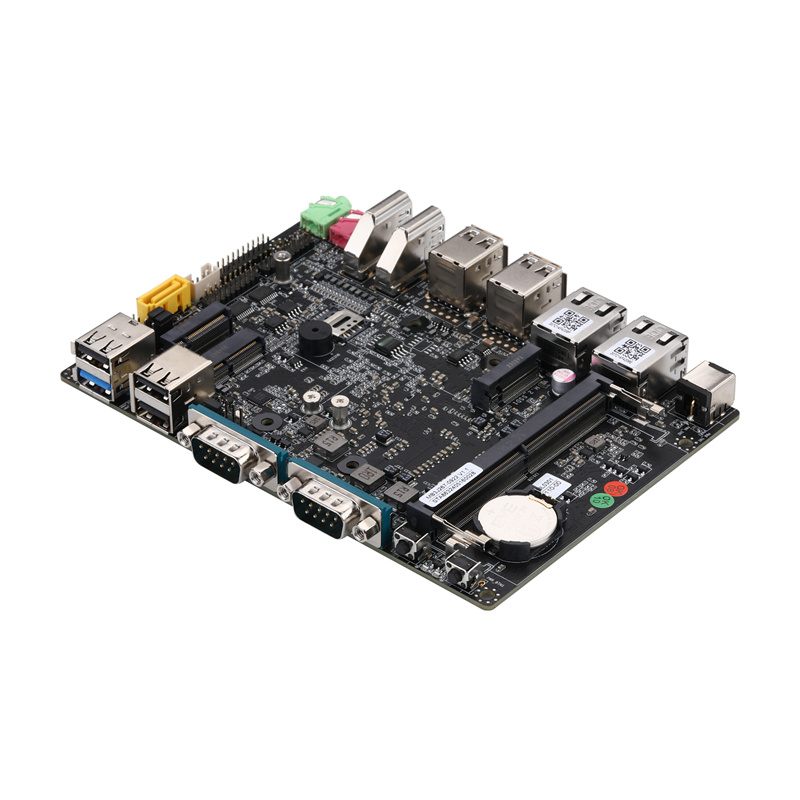

Motherboard MB3J267-0900 Series

Name: Motherboard MB3J267-0900 Series
Brand: Qotom
SKU: MB3J267-0900

Model: MB3J267-0900

Total LAN2

LAN Speed2.5G RJ45

Serial Ports6

MB3J267-0900 targets custom computer integration through modern industrial motherboard supporting Intel Alder Lake-N and Twin Lake processors including N100, N305, N150 and N355. The platform also includes DDR5 up to 48GB, 6 serial ports, dual 2.5G LAN, 3 × M.2 and SATA, it is. Its intended uses include industrial equipment integration and system integrator projects.

Key Specs

CPU: Alder lake N / Twin Lake
Memory: DDR5 SO-DIMM · Max 48GB
LAN: 2
Storage: M.2 Mkey, SATA
Board Size: 148x104

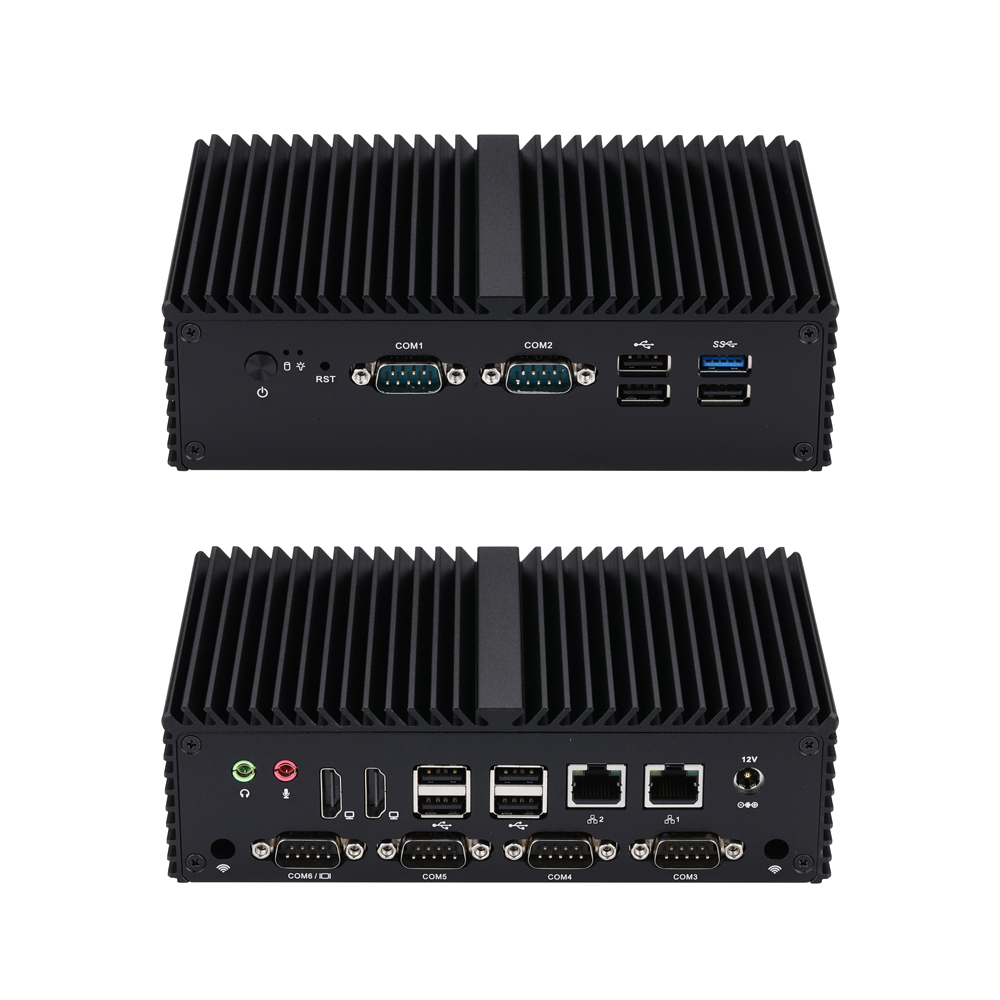

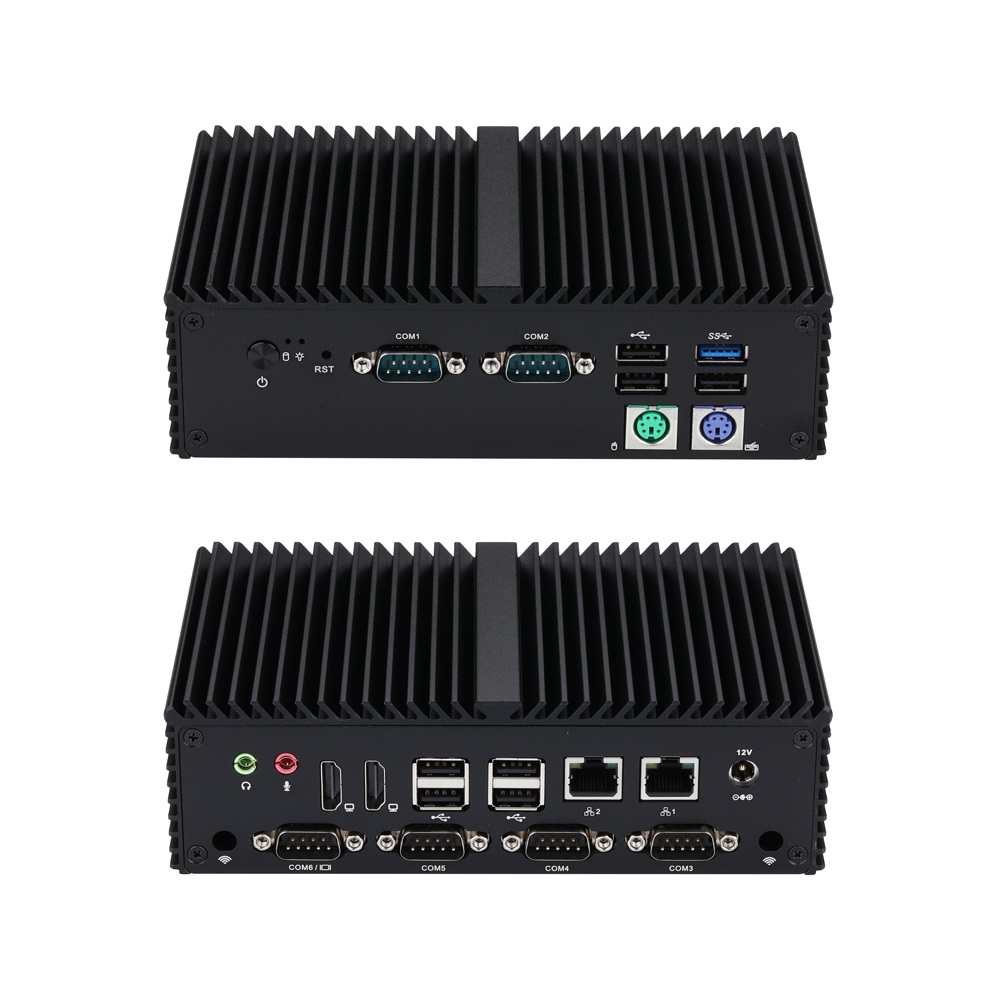

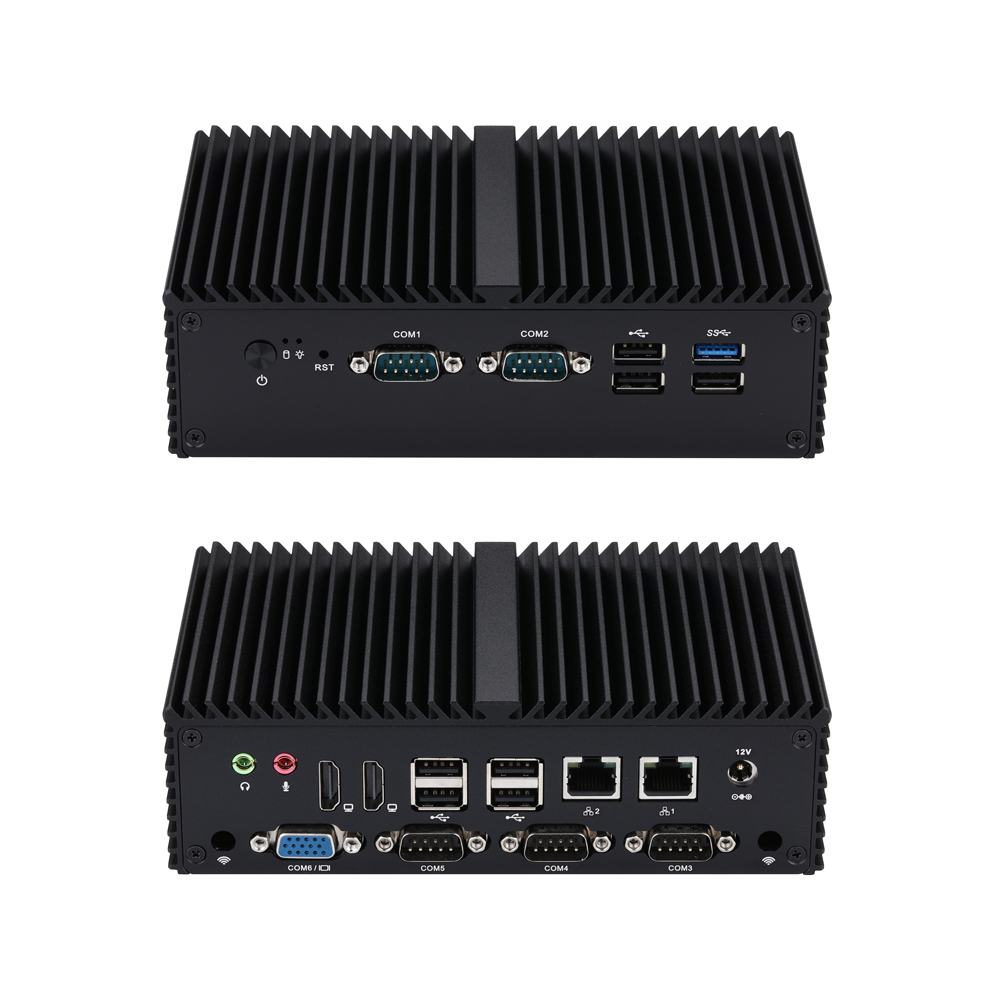

Compatible Systems

Main Features

Intel Alder Lake-N Processor
2 × HDMI, 1 × VGA (Header)
1 × USB 3.0, 7 × USB 2.0
3 × M.2, 1 × SATA 3.0
6 × RS-232, 2 × PS/2
2 × Realtek 2.5G LAN
