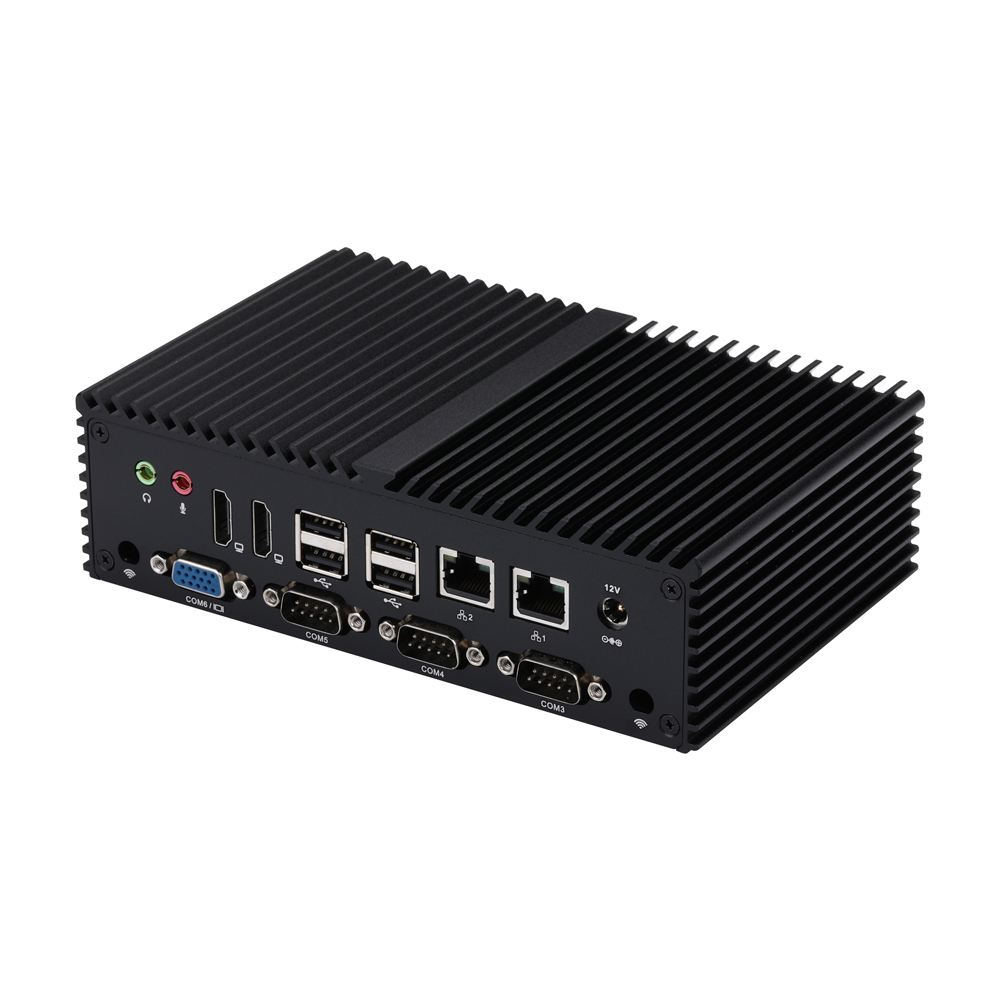

Mini PC Q10900XV S04 Series

Model: Q10900XV-S04

Total LAN2
LAN Speed2.5G RJ45
Serial Ports5

For equipment requiring multiple serial connections, Q10900XV-S04 offers fanless industrial Mini PC with 5×RS232, 2×Realtek 2.5G LAN, VGA and DDR5 up to 48GB. The platform also includes Alder Lake-N and Twin Lake processors including N100 and N305, it provides triple display, M.2/SATA storage and 4G/5G. It can serve equipment integration, industrial gateways and embedded control.

Key Specs

CPU
Alder lake N / Twin Lake
Memory
DDR5 SO-DIMM · Max 48GB
LAN
2
Storage
M.2 Mkey, SATA

Compatible Motherboard

MB3J267-0900
MB3J267-0900
Send Inquiry Buy Now
Q10911XVQ10921XVQ10922XVQ10923XVQ10924XVQ10931XVQ10932XVQ11022XVQ11023XVQ11031XVQ11032XVIntelAlder Lake-NTwin LakePentiumCeleronATOMX7425EN50N97N100N200N300N305N150N250N350N355

Main Features

  • Intel Alder Lake-N Processor

  • Intel Twin Lake-N Processor

  • 2 × HDMI, 1 × VGA

  • 1 × USB 3.0, 7 × USB 2.0, 5 × RS-232

  • 3 × M.2, 1 × SATA 3.0

  • 2 × Realtek 2.5G LAN

Processor System

CPUIntel Alder Lake-N Processor Intel Twin Lake-N Processor
CPU TDPBy CPU
Memory1 × DDR5 SO-DIMM Socket (Up to 48G)
ChipsetBy CPU
GraphicsBy CPU
AudioRealtek HD Audio
Watch DogYes

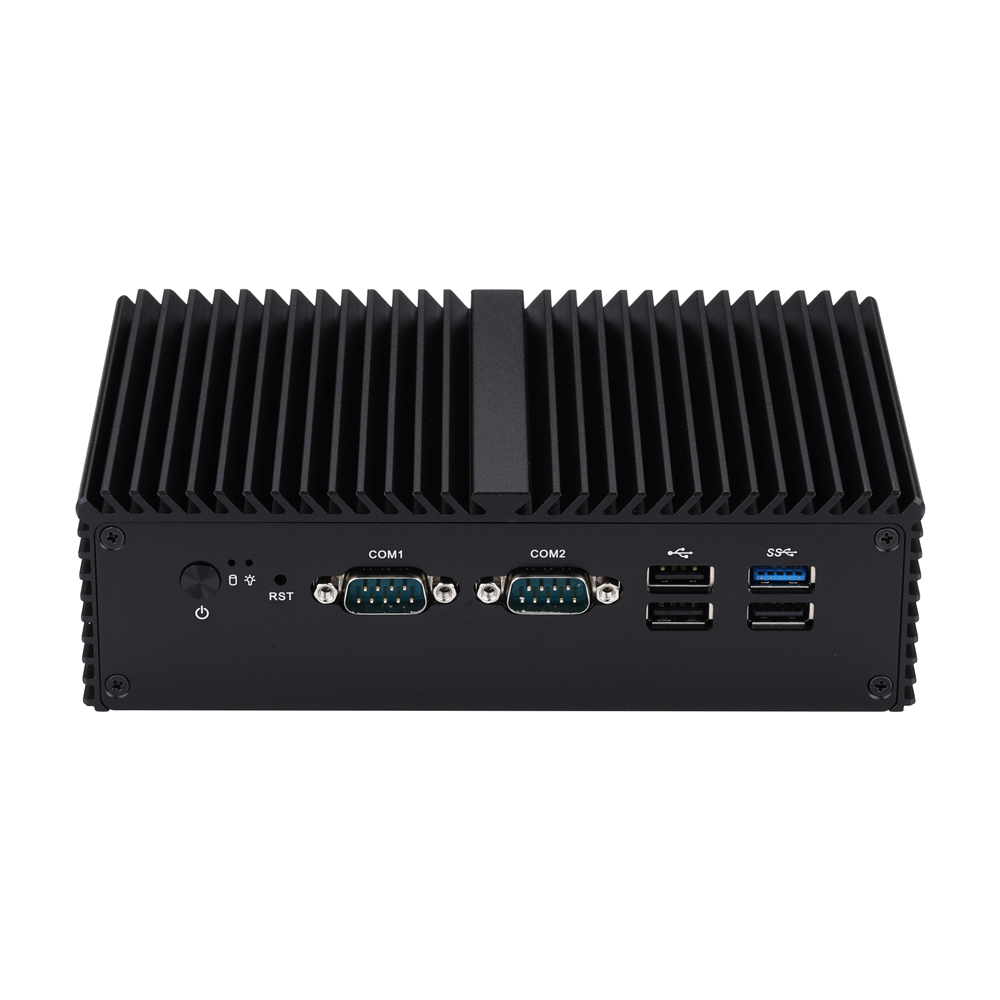

Front I/O

Power Button1 × Power Button,1 × Reset Button
LED1 × Power LED,1 × HDD LED
USB3 × USB 2.0, 1 × USB 3.0
Serial Port2 × RS-232 (COM1/2 can be set up as RS-485)
PS/20
GPIO0

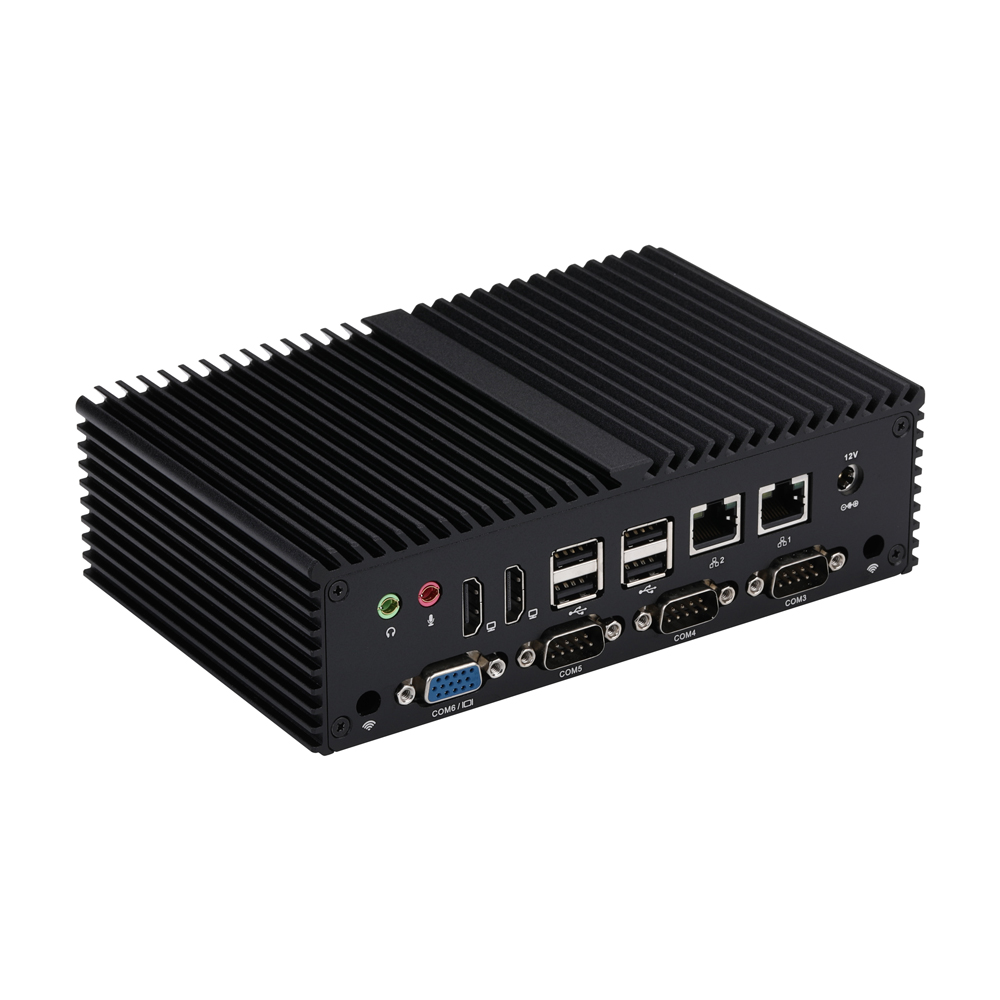

Rear I/O

Power1 × DC Jack

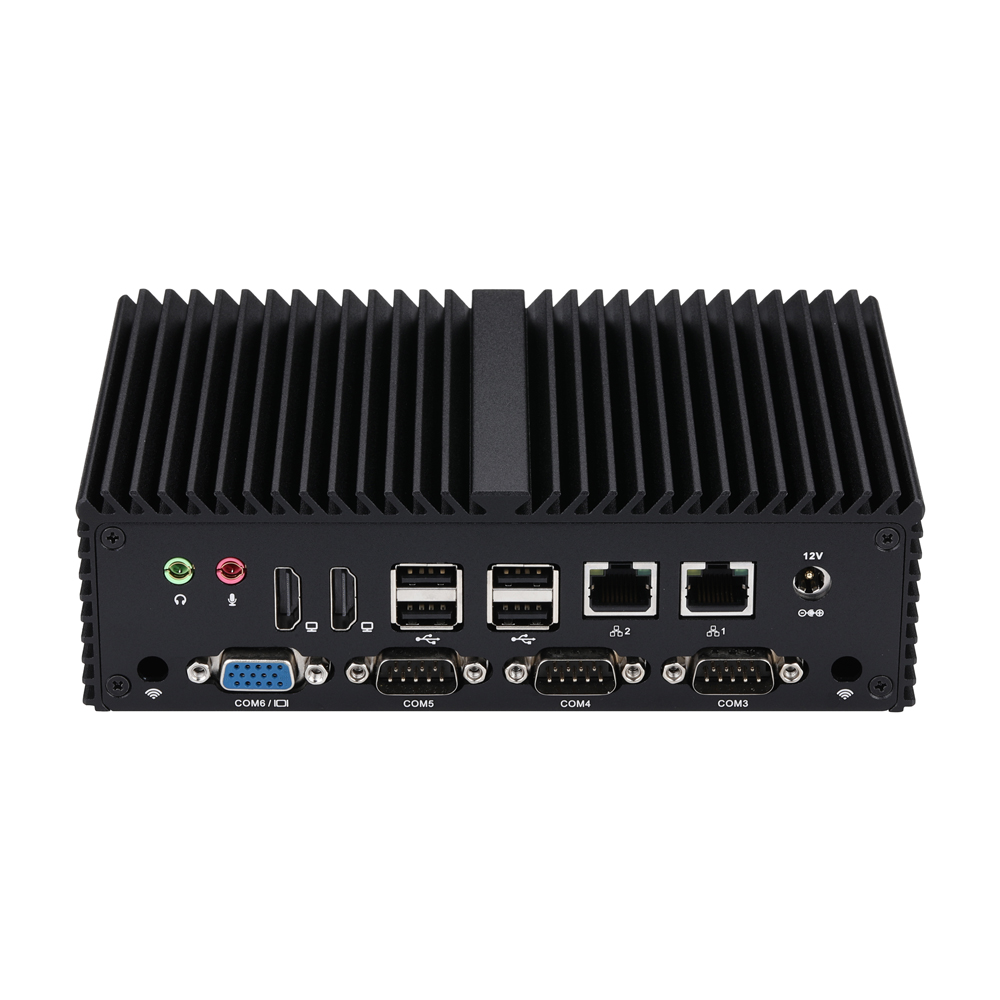

LAN2 × Realtek 2.5G LAN
USB4 × USB 2.0
Audio1 × Mic-in,1 × Line-out
Display2 × HDMI,1 × VGA
Serial Port3 × RS-232

Storage

Type1 × 2.5-inch HDD/SSD
Type1 × M.2 for SSD (M key, Type:2280,PCIe 3.0 × 2)

Expansion

M.21 × M.2 for SSD (M key, Type:2280,PCIe 3.0 × 2)
M.21 × M.2 for 4G/5G (B key, Type: 3042/3052)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot1
AutoStart JumperYes,1 × 3Pin, Pitch 2.54mm
GPIO1,2 × 5Pin, Pitch 2.0mm
VGA0
Serial Port0
Clear CMOS JumperYes,1 × 3Pin, Pitch 2.54mm
Front Panel Header1, 2 × 5Pin, Pitch 2.0mm

Power

Power Adapter12V3A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension178 × 111 × 52mm
Weight0.82kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockNo
Cooling ModeFanless Design

OS Support

OSUEFI Windows 10, UEFI Linux

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q10911XV-S04 A lder lake-N - N50 2 / - 3.4GHz 6M Intel UHD Graphics 6W
Q10921XV-S04 Alder lake-N - N97 4 / - 3.6GHz 6M Intel UHD Graphics 12W
Q10922XV-S04 Alder lake-N - N100 4 / 4 3.4GHz 6M Intel UHD Graphics 6W
Q10923XV-S04 Alder lake-N - N200 4 / 4 3.7GHz 6M Intel UHD Graphics 6W
Q10924XV-S04 Alder lake-N Atom X7425E 4 / 4 3.4GHz 6M Intel UHD Graphics 12W
Q10931XV-S04 Alder lake-N Core i3 N300 8 / 8 3.8GHz 6M Intel UHD Graphics 7W
Q10932XV-S04 Alder lake-N Core i3 N305 8 / 8 3.8GHz 6M Intel UHD Graphics 15W
Q11022XV-S04 Twin Lake-N - N150 4 / 4 3.6GHz 6M Intel Graphics 6W
Q11023XV-S04 Twin Lake-N - N250 4 / 4 3.8GHz 6M Intel Graphics 6W
Q11031XV-S04 Twin Lake-N Core i3 N350 8 / 8 3.9GHz 6M Intel Graphics 7W
Q11032XV-S04 Twin Lake-N Core i3 N355 8 / 8 3.9GHz 6M Intel Graphics 15W
