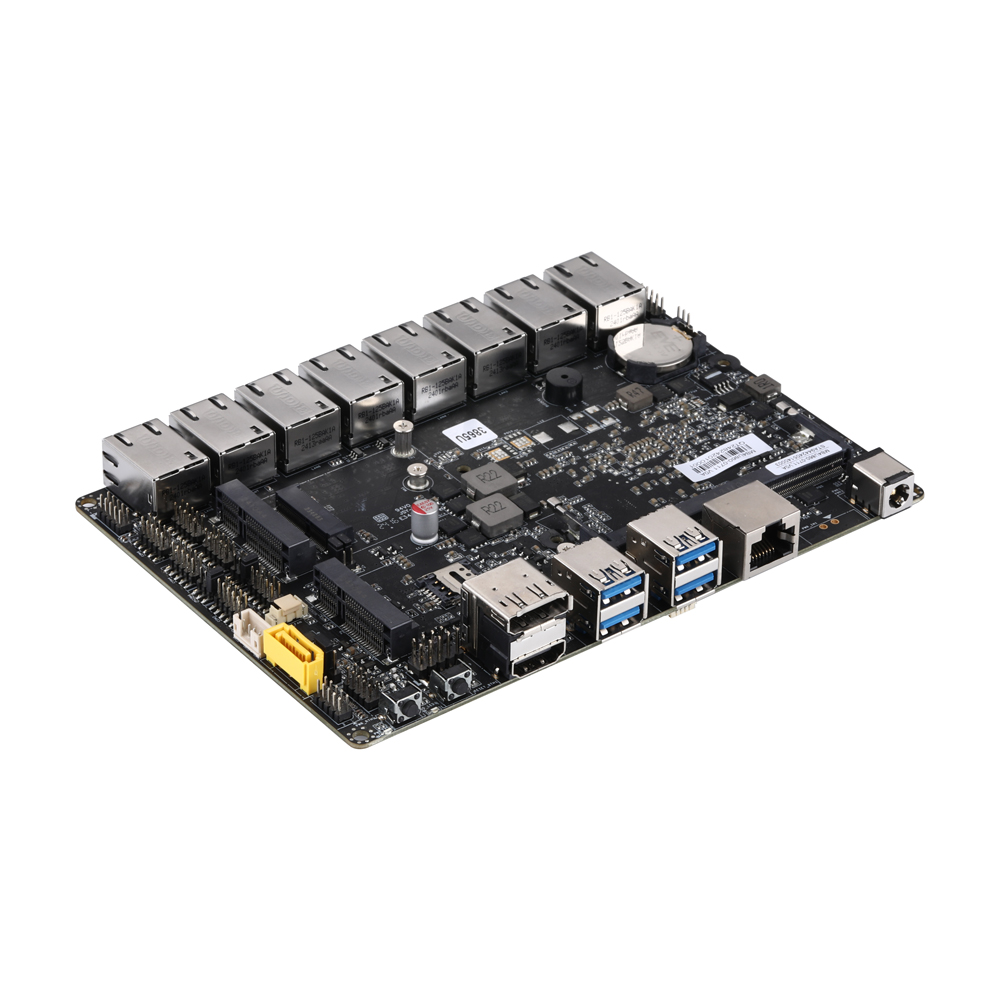

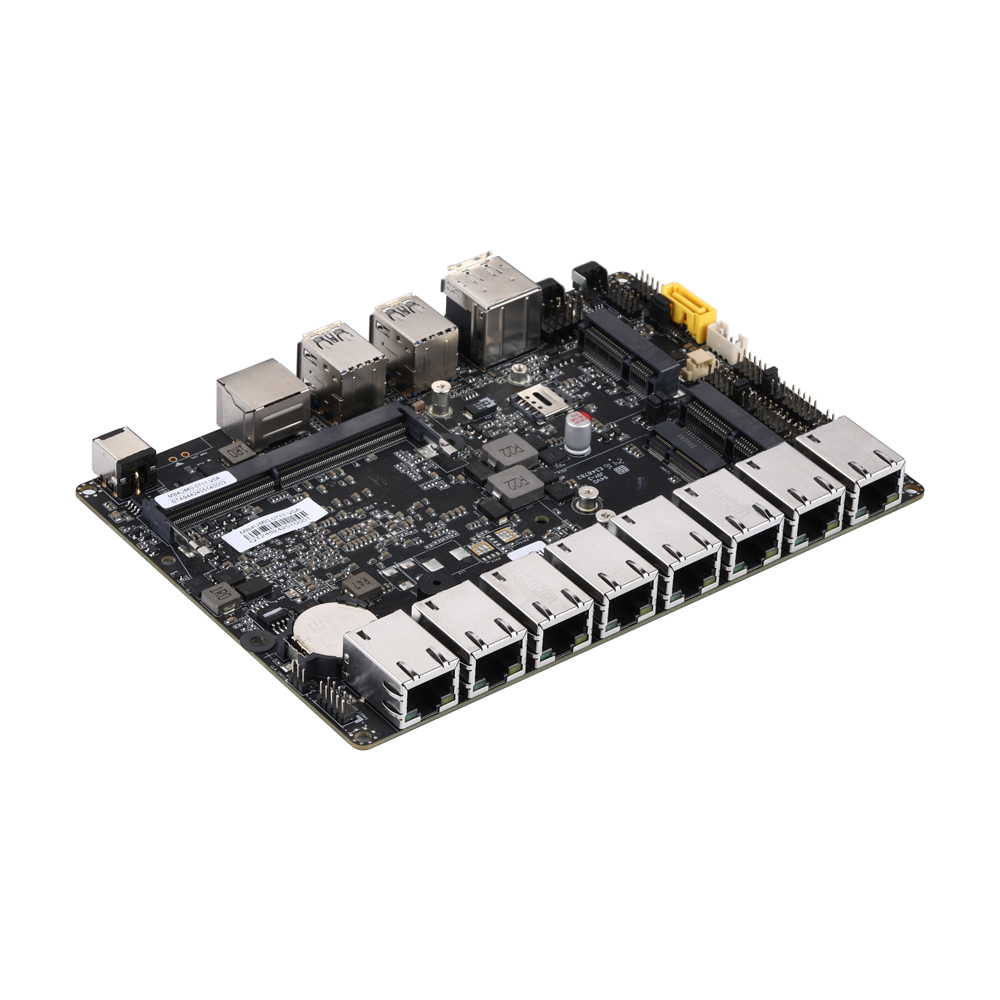

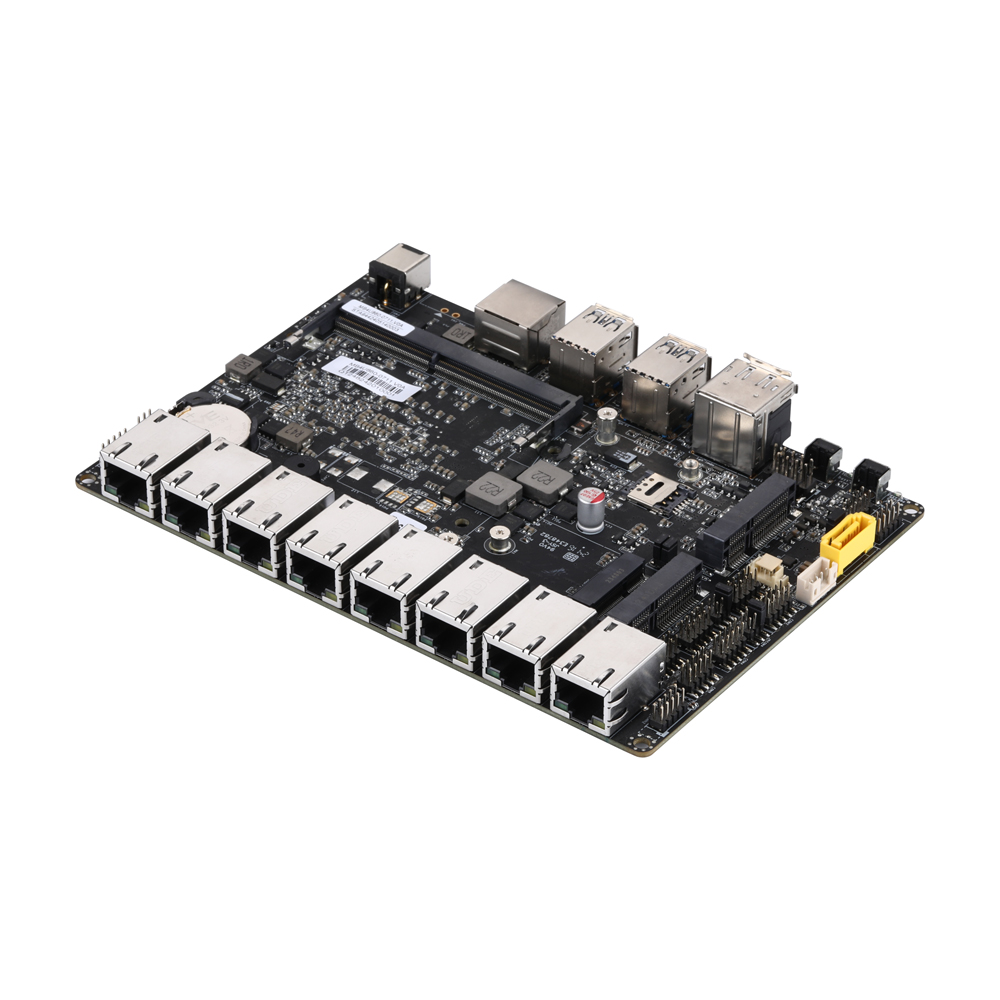

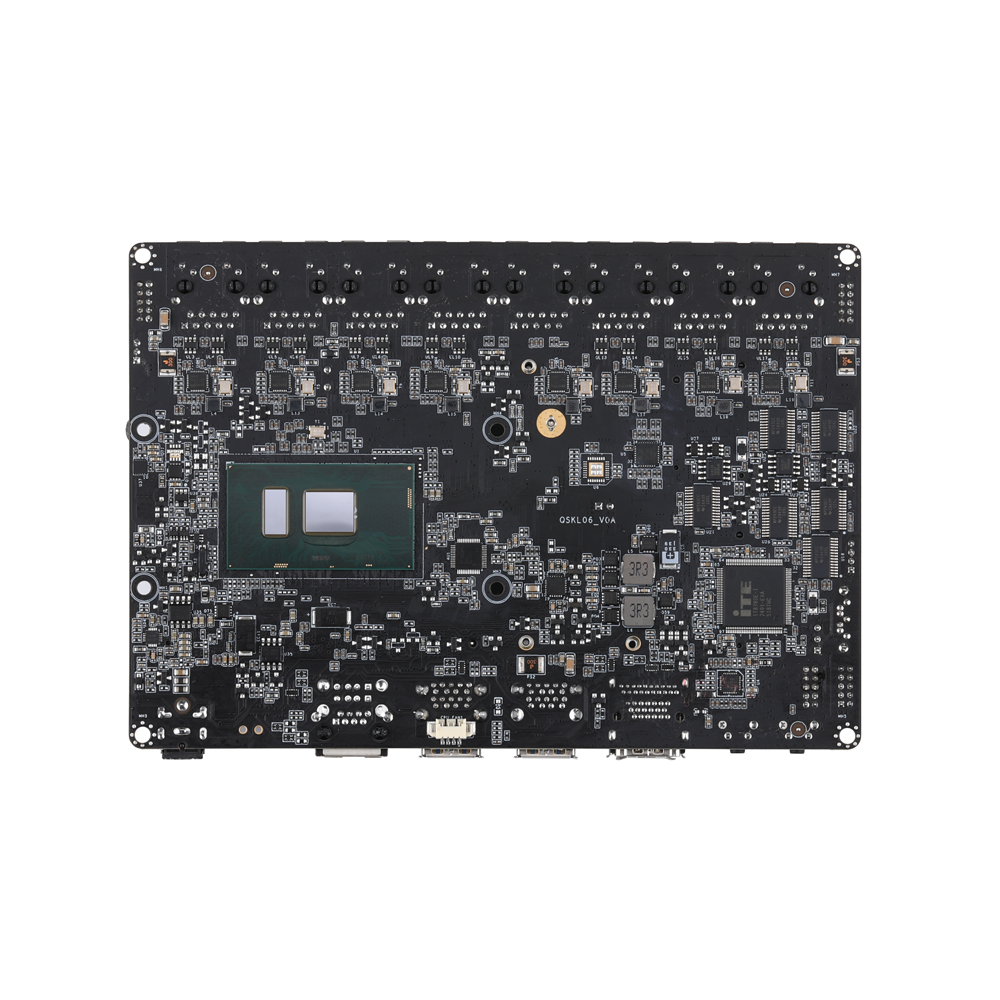

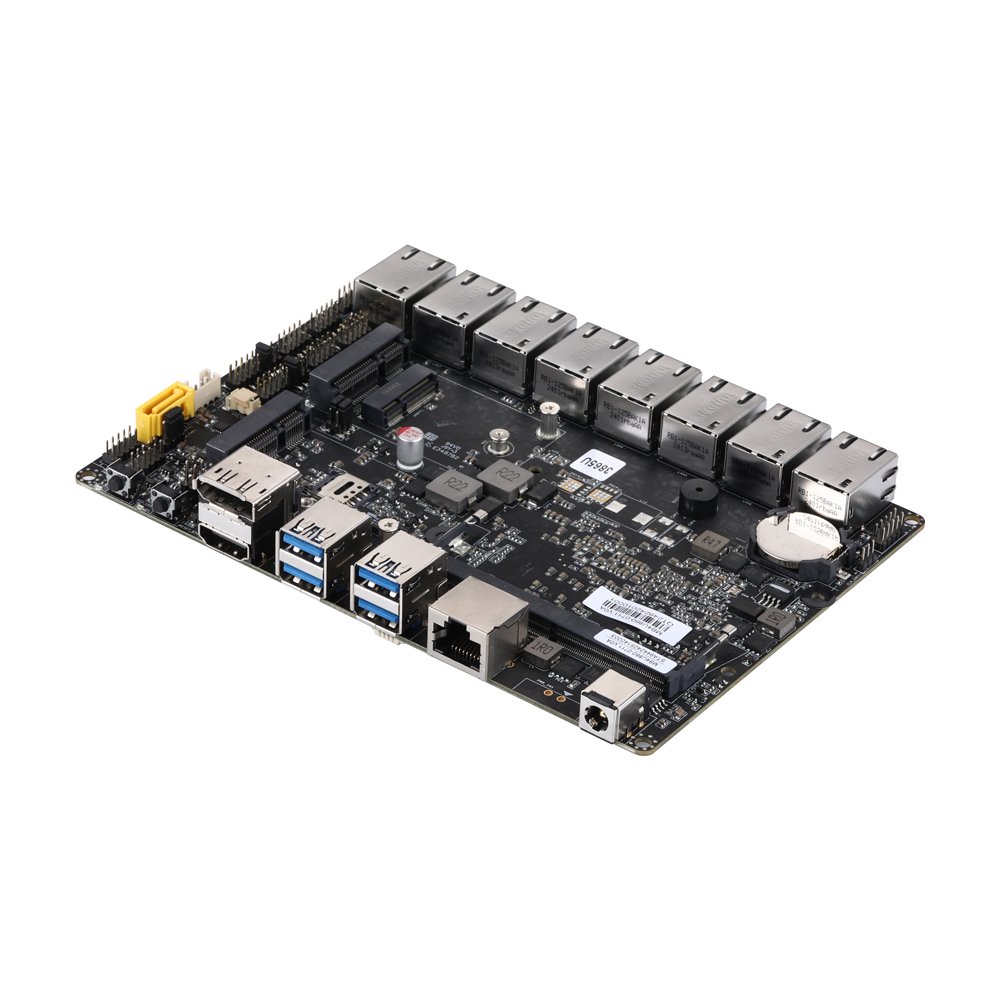

Motherboard MB4U86R-0600 Series

Name: Motherboard MB4U86R-0600 Series
Brand: Qotom
SKU: MB4U86R-0600

Model: MB4U86R-0600

Total LAN8

LAN Speed1G RJ45

Serial Ports1

Key Specs

CPU: Skylake / Kaby Lake / Kaby Lake-R
Memory: DDR4 SO-DIMM · Max 32GB
LAN: 8
Storage: mSATA, SATA
Board Size: 165x115

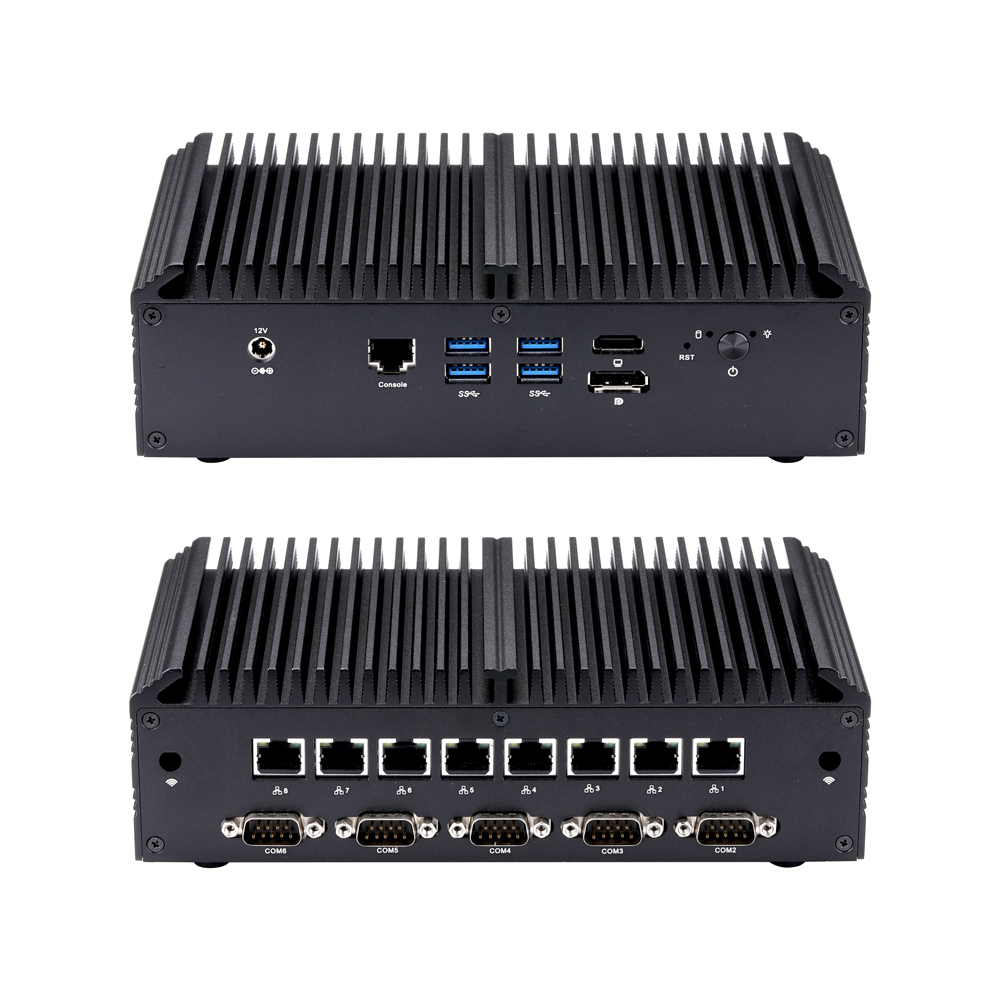

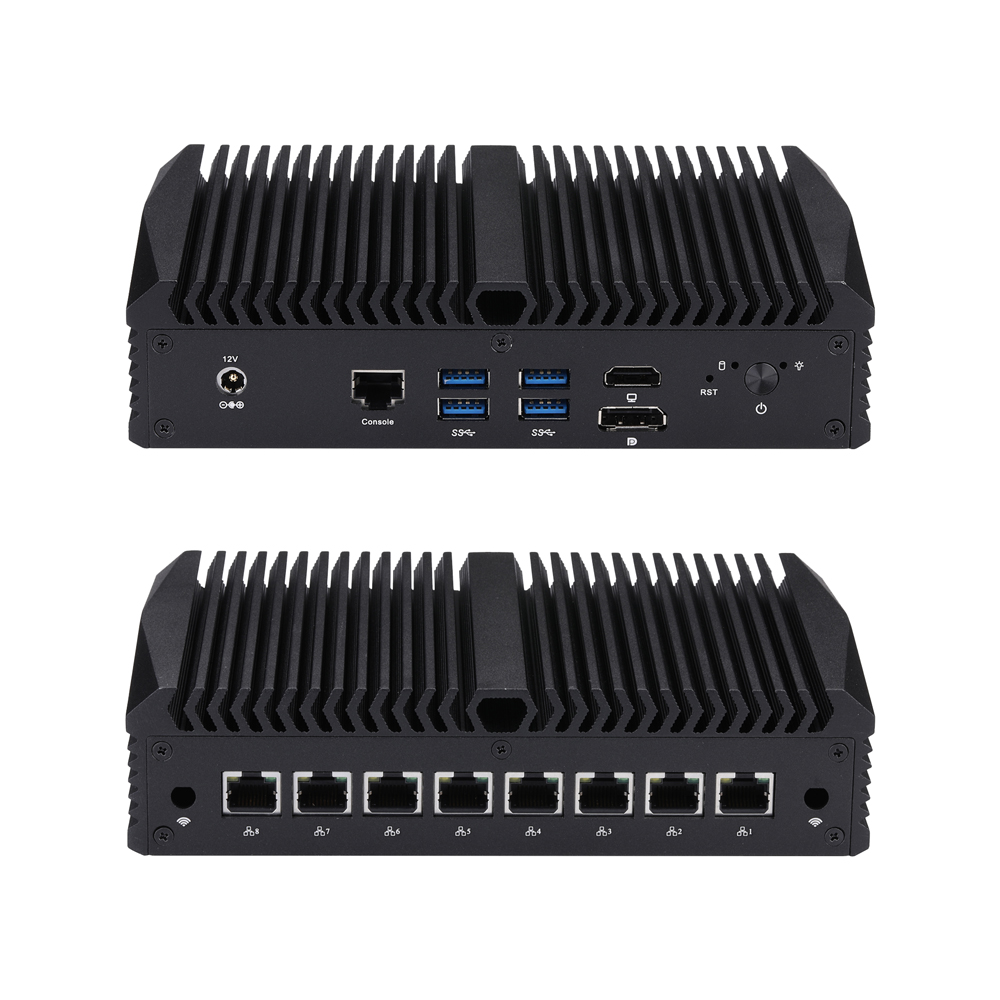

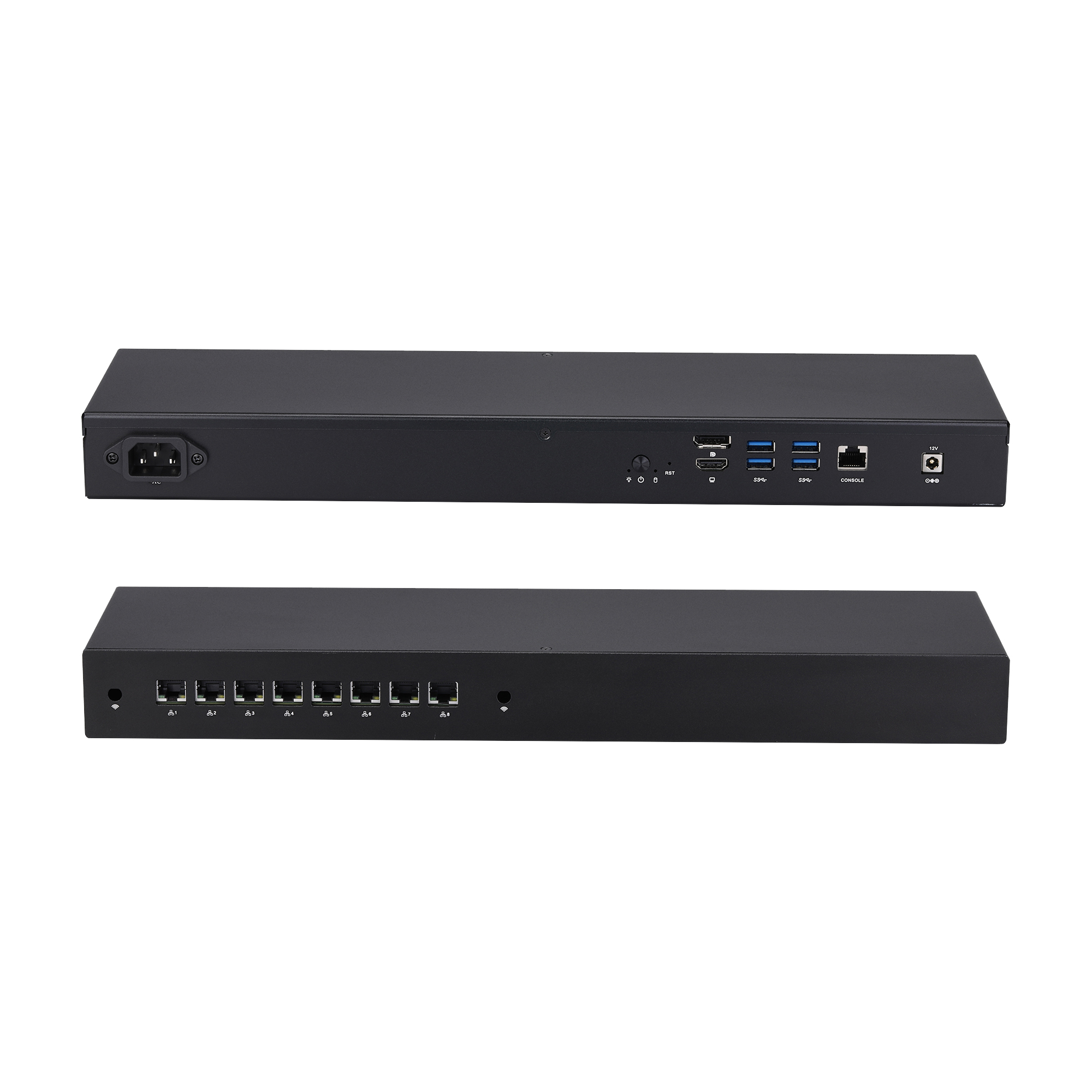

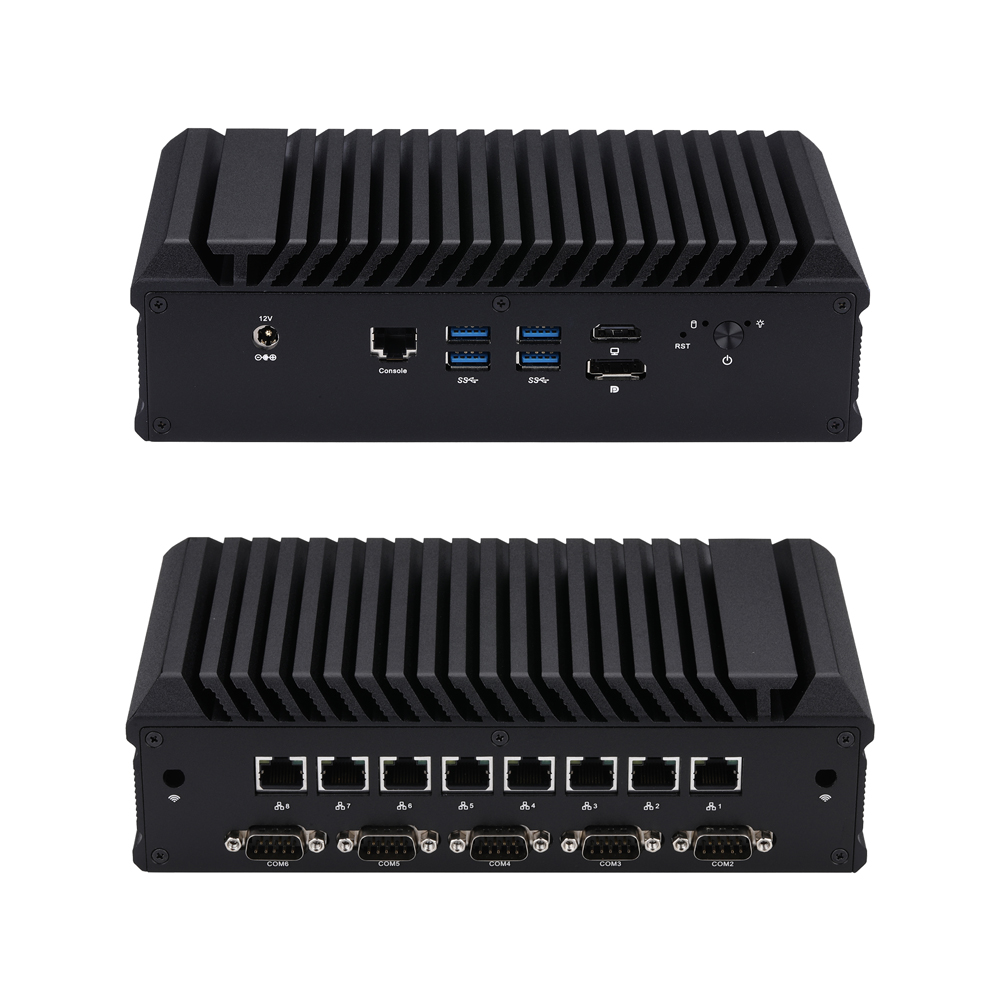

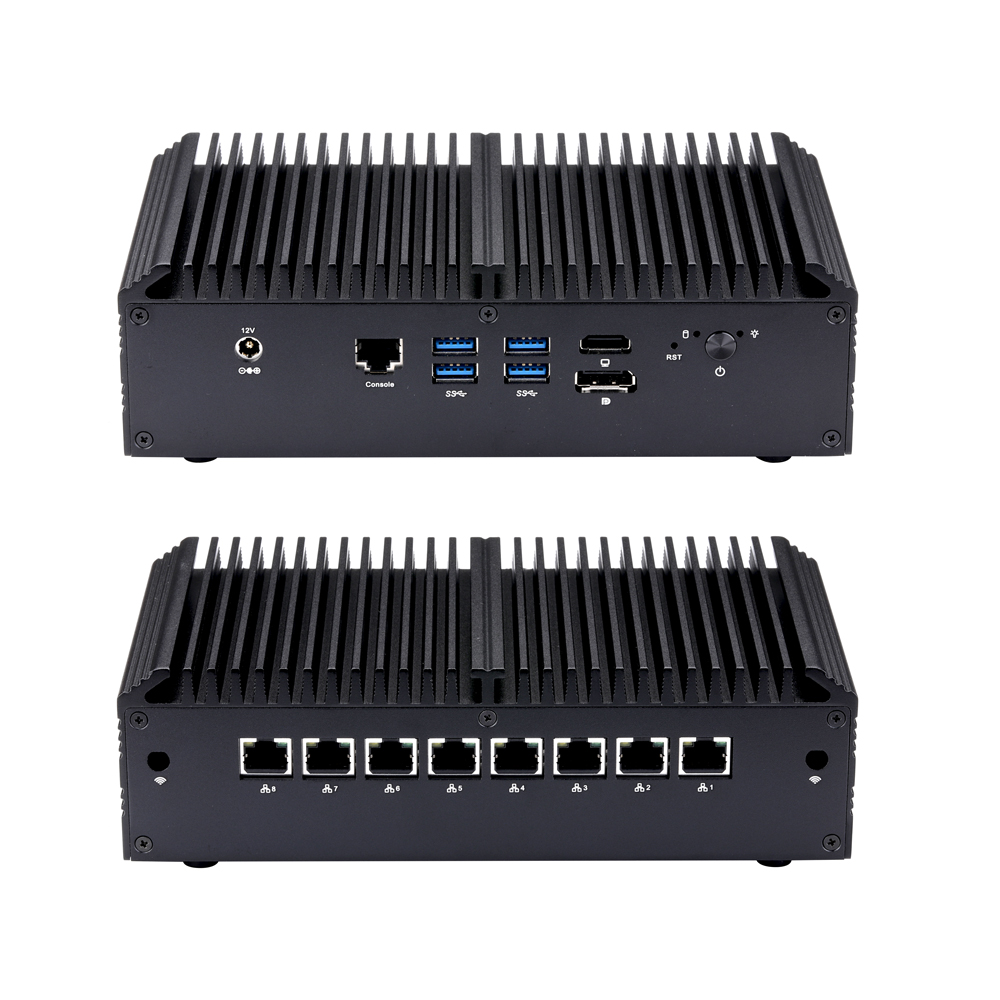

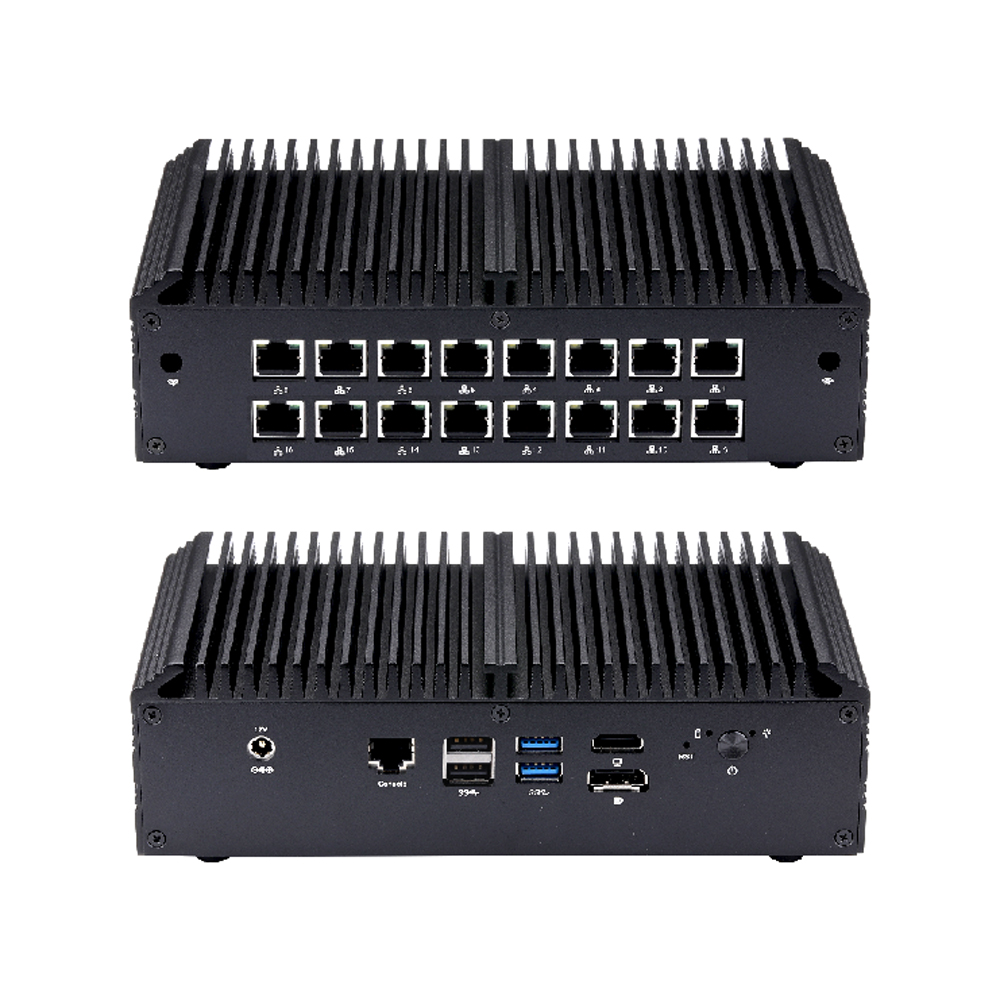

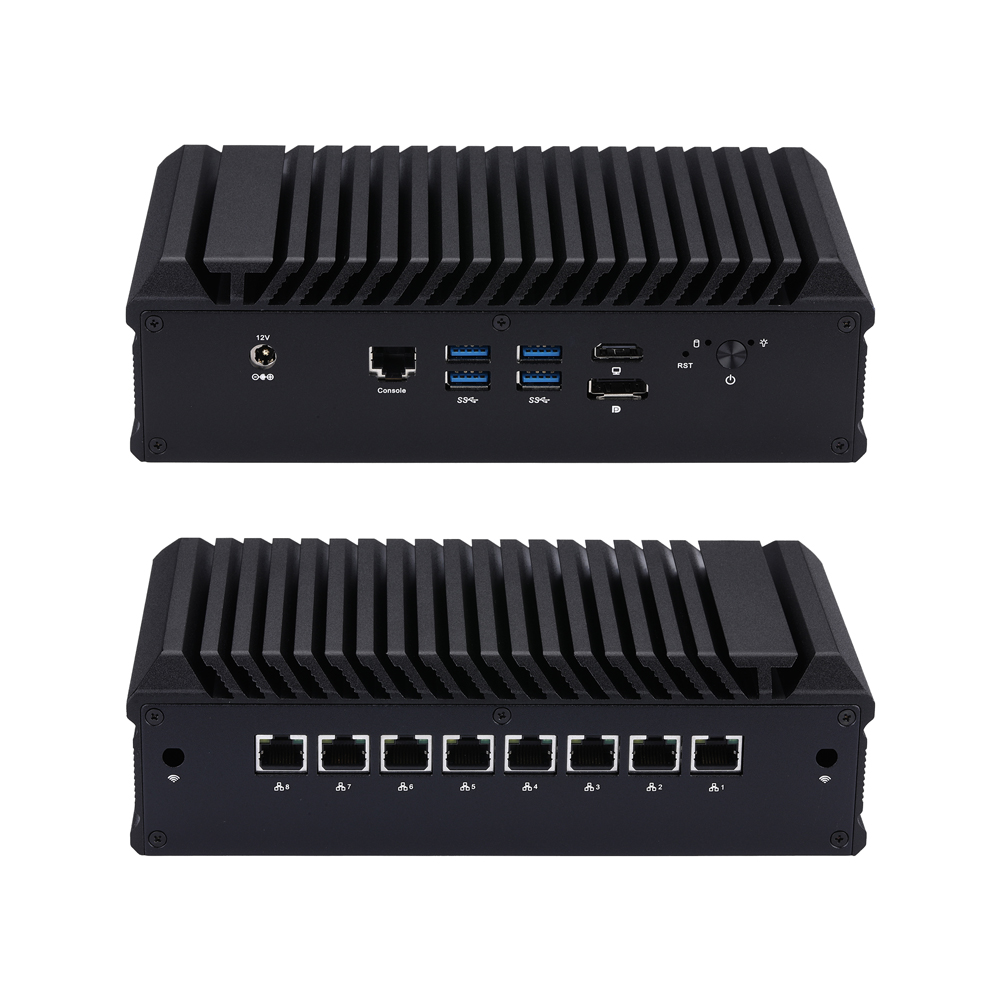

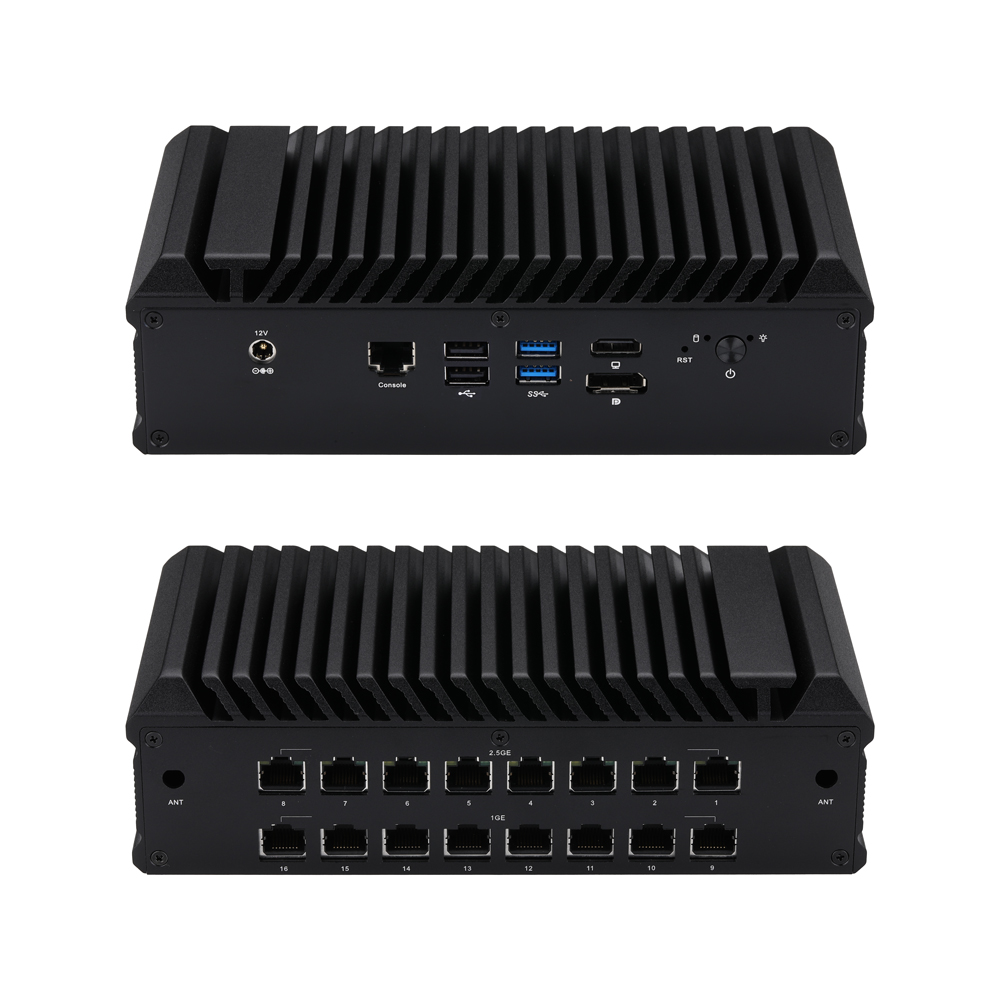

Compatible Systems

Main Features

Intel 6th Skylake-U Processor
Intel 7th Kabylake-U Processor
Intel 8th Kabylake-R-U Processor
1 × Display Port, 1 × HDMI, 1 × VGA (Option)
4 × USB 3.0, 1 × SATA 3.0, 6 × RS-232
1 × M.2, 1 × mSATA,1 × Mini-PCIe
8 × Realtek Gigabit LAN

Related Products

Motherboard MB7UT1X-1500 Series

MB7UT1X-1500

Panel PC Q30600PPC S61 Series

Q30600PPC-S61

Mini PC Q30600P S02 Series

Q30600P-S02

Mini PC Q30600PV S02 Series

Q30600PV-S02

Mini PC Q30600X S20 Series

Q30600X-S20

Mini PC Q30600X S10 Series

Q30600X-S10

CPU	• Intel 6th Skylake-U Processor • Intel 7th Kabylake-U Processor • Intel 8th Kabylake-R-U Processor
Chipset	By CPU
Dimension	165 × 115mm
Core Number	By CPU
Max. Speed	By CPU
L2 Cache	By CPU
BIOS	UEFI

Technology	DDR4 2133MHz SDRAM
Max.	32GB
Socket	1 × SO-DIMM

Controller	By CPU
VRAM	Shared Memory
Display	1 × Display Port 1 × HDMI 1 × VGA (Header)
Multi Display	Yes

Interface	10/100/1000Mbps
Controller	8 × Realtek Gigabit LAN
Connector	8 × RJ-45

Power Button	1 × Power Button, 1 × Reset Button
LED	1 × Power LED, 1 × HDD LED
USB	4 × USB 3.0,2 × USB 2.0 (Option)
Serial Port	1 × RS-232 (RJ-45)
Display	1 × Display Port,1 × HDMI
DC-IN	1

Mini PC Series

Motherboard Series

NAS Storage Series

OPS Series

Panel PC Series

Accessories

Motherboard MB4U86R-0600 Series

Key Specs

Compatible Systems

Main Features

Processor System

Memory

Graphics

Ethernet

Audio

Front I/O

Rear I/O

Storage

Expansion

Internal Connector

Watchdog Timer

Power

Environmental

Accessories

OS Support

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

mSATA	1 × Full-length Mini PCIe for SSD
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230)
Mini PCIe	1 × Mini PCIe, Full-length Mini PCIe for 4G by Default Half-length Mini PCIe for Wi-Fi (Only for USB Device,Option)

VGA Header	1, 2 × 5Pin, Pitch 2.0mm (Option)
Serial Port	6, 2 × 5Pin, Pitch 2.0mm, COM3/4 Support 5V/12V (Option)
RS-485	COM3/4 can be set up as RS-485 (Option)
SATA	1, SATA 3.0 (6.0Gb/S)
SATA PWR Connector	1, 1 × 4Pin, Pitch PH2.0mm
SIM Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.54mm
Clear CMOS Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
GPIO Header	1, 2 × 5Pin, Pitch 2.0mm
USB 2.0 Header	2, 2 × 5Pin, Pitch 2.0mm
Front Panel Header	1, 2 × 5Pin, Pitch 2.54mm
Power Header	1, Phoenix 1 × 2Pin, Pitch 3.5mm (Option)

Output	From Super I/O to Drag RESETCON#
Interval	256 Segments,0,1,2,3,,,255 sec/min

Ordering Code	Code Name	Processor Type	Processor Number	Cores / Threads	Frequency	Cache	Graphics	TDP
MB4U86R-0611	Skylake	Celeron	3855U	2 / 2	1.6GHz	2M	Intel HD 510	15W
MB4U86R-0612	Skylake	Celeron	3955U	2 / 2	2.0GHz	2M	Intel HD 510	15W
MB4U86R-0631	Skylake	Core i3	6100U	2 / 4	2.3GHz	3M	Intel HD 520	15W
MB4U86R-0651	Skylake	Core i5	6200U	2 / 4	2.3GHz ~ 2.8GHz	3M	Intel HD 520	15W
MB4U86R-0671	Skylake	Core i7	6500U	2 / 4	2.5GHz ~ 3.1GHz	4M	Intel HD 520	15W
MB4U86R-0711	Kaby Lake	Celeron	3865U	2 / 2	1.8GHz	2M	Intel HD 610	15W
MB4U86R-0712	Kaby Lake	Celeron	3965U	2 / 2	2.2GHz	2M	Intel HD 610	15W
MB4U86R-0731	Kaby Lake	Core i3	7100U	2 / 4	2.4GHz	3M	Intel HD 620	15W
MB4U86R-0751	Kaby Lake	Core i5	7200U	2 / 4	2.5GHz ~ 3.1GHz	3M	Intel HD 620	15W
MB4U86R-0771	Kaby Lake	Core i7	7500U	2 / 4	2.7GHz ~ 3.5GHz	4M	Intel HD 620	15W
MB4U86R-0811	Kaby Lake R	Celeron	3867U	2 / 2	1.8GHz	2M	Intel HD 610	15W
MB4U86R-0821	Kaby Lake R	Pentium	4417U	2 / 2	2.3GHz	2M	Intel HD 610	15W
MB4U86R-0831	Kaby Lake R	Core i3	8130U	2 / 4	2.0GHz ~ 3.40GHz	4M	Intel UHD 620	15W
MB4U86R-0851	Kaby Lake R	Core i5	8250U	4 / 8	1.6GHz ~ 3.4GHz	6M	Intel UHD 620	15W
MB4U86R-0871	Kaby Lake R	Core i7	8550U	4 / 8	1.8GHz ~ 4.0GHz	8M	Intel UHD 620	15W
