Mini PC Q30600S S02 Series

Model: Q30600S-S02

Total LAN2
LAN Speed1G RJ45
Serial Ports1

Q30600S-S02 is a compact computing platform with Intel Skylake and Kaby Lake processors including Core i5 processor options with up to 32GB DDR4, M.2 NVMe SSD, 2.5-inch HDD/SSD, dual HDMI and dual Gigabit LAN. Typical applications include embedded installations, everyday computing and system integration.

Key Specs

CPU
Skylake / Kaby Lake
Memory
DDR4 SO-DIMM · Max 32GB
LAN
2
Storage
M.2 Mkey, SATA

Compatible Motherboard

MB2U247-0600
MB2U247-0600
Send Inquiry
Q510SQ520SQ530SQ550SQ570SQ515SQ525SQ535SQ555SQ575SQ30611SQ30612SQ30631SQ30651SQ30671SQ30711SQ30712SQ30731SQ30751SQ30771SIntelSkylakeKaby LakeKaby Lake-RCeleronPentiumCore i3Core i5Core i73855U3955U4405U6006U6100U6200U6300U6500U6600U3865U3965U4415U7020U7100U7130U7200U7500U7560U7660U7600U

Main Features

  • Intel 6th Skylake-U Processor

  • Intel 7th Kabylake-U Processor

  • 2 × HDMI,

  • 4 × USB 3.0,2 × USB 2.0,1 × SATA 3.0

  • 2 × M.2 Slot

  • 2 × Realtek Gigabit LAN

Processor System

CPU• Intel 6th Skylake-U Processor • Intel 7th Kabylake-U Processor
CPU TDPBy CPU
Memory1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset2 × Realtek Gigabit LAN
AudioRealtek HD Audio
Watch DogYes

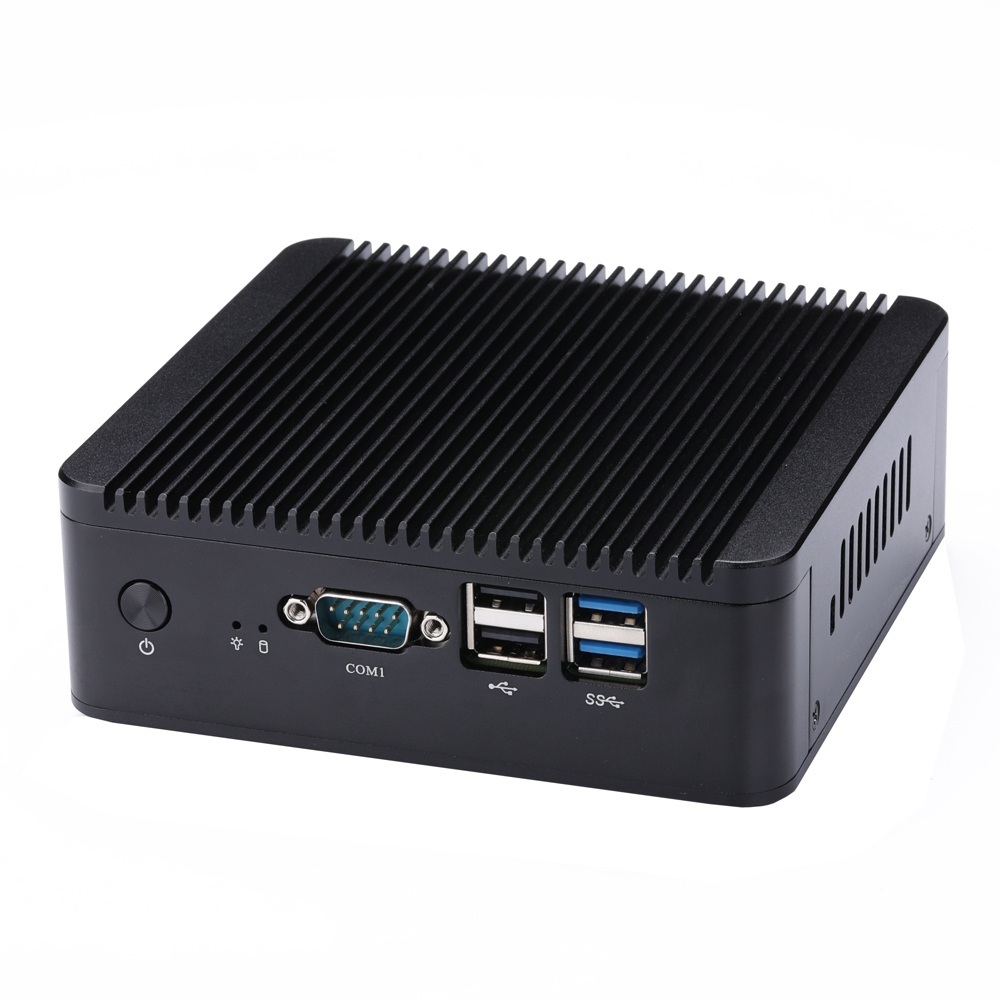

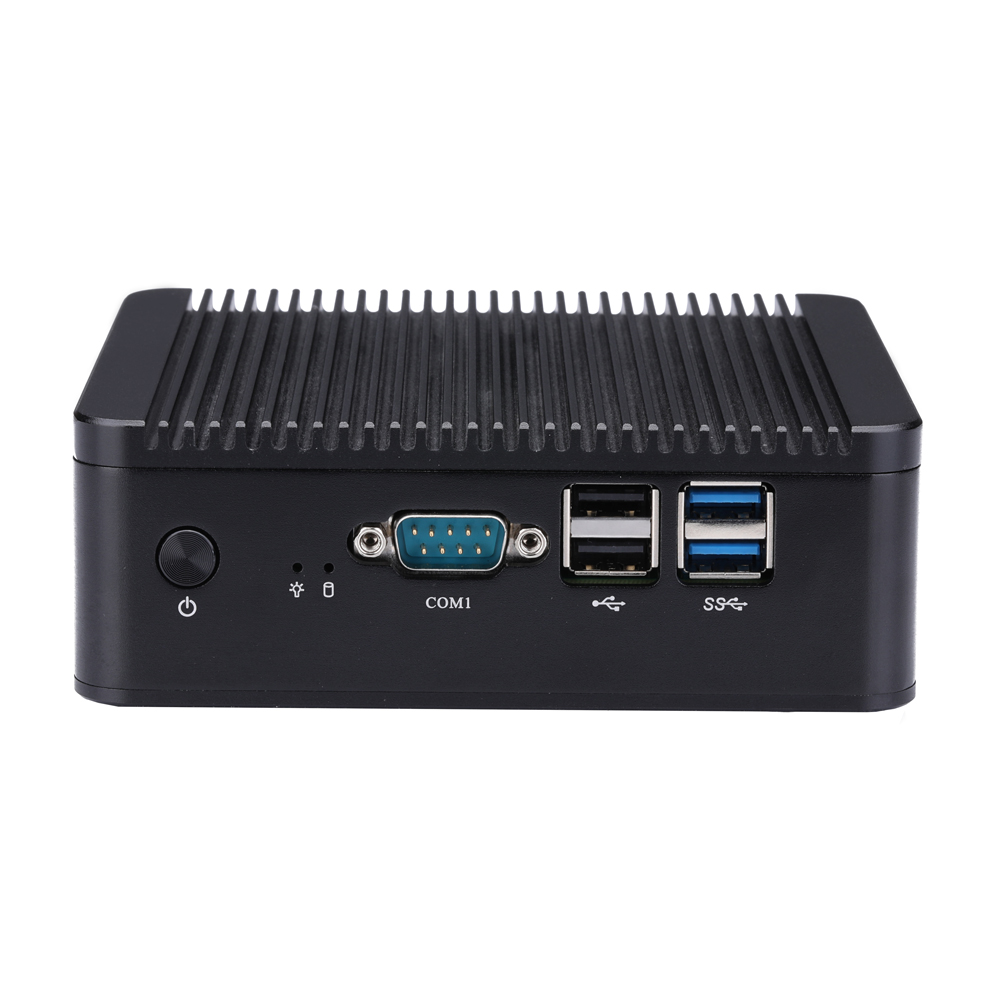

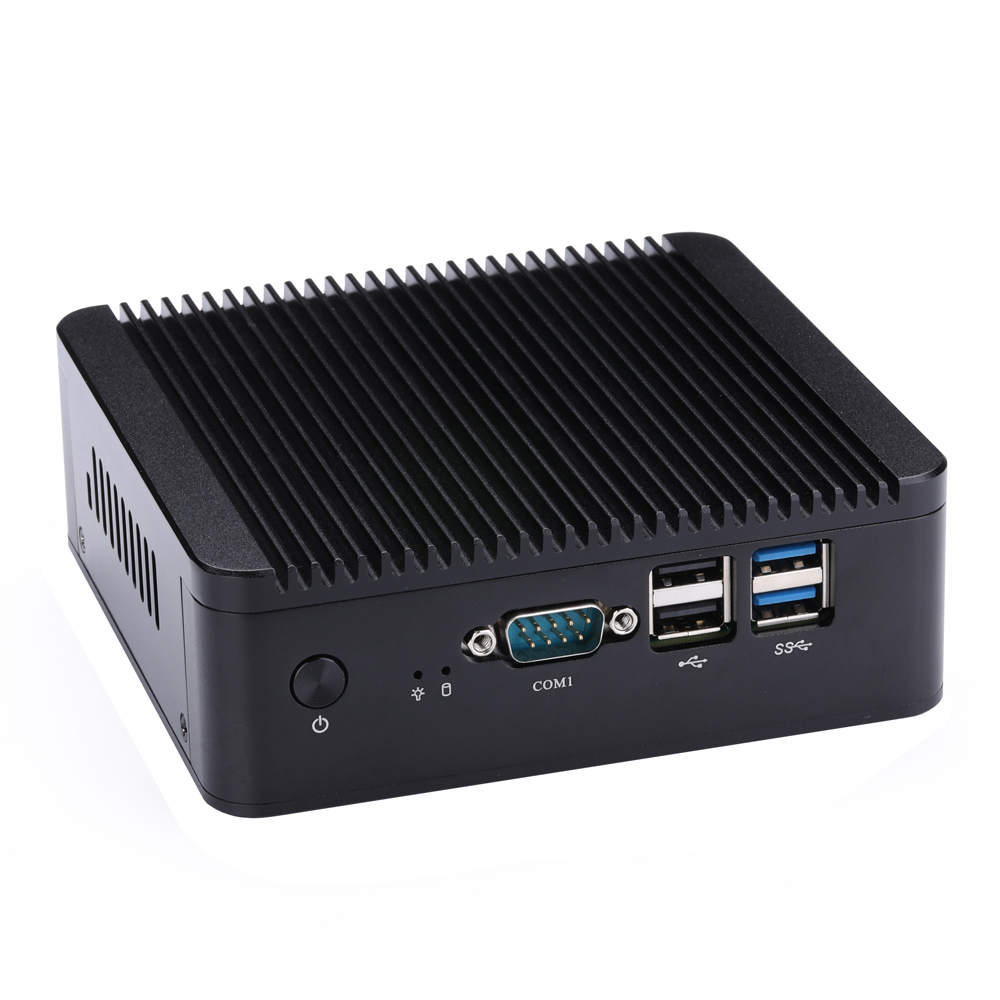

Front I/O

Power Button1
LED1 × Power LED,1 × HDD LED
USB2 × USB 3.0,2 × USB 2.0
Serial Port1 × RS-232 (COM1)
Audio0

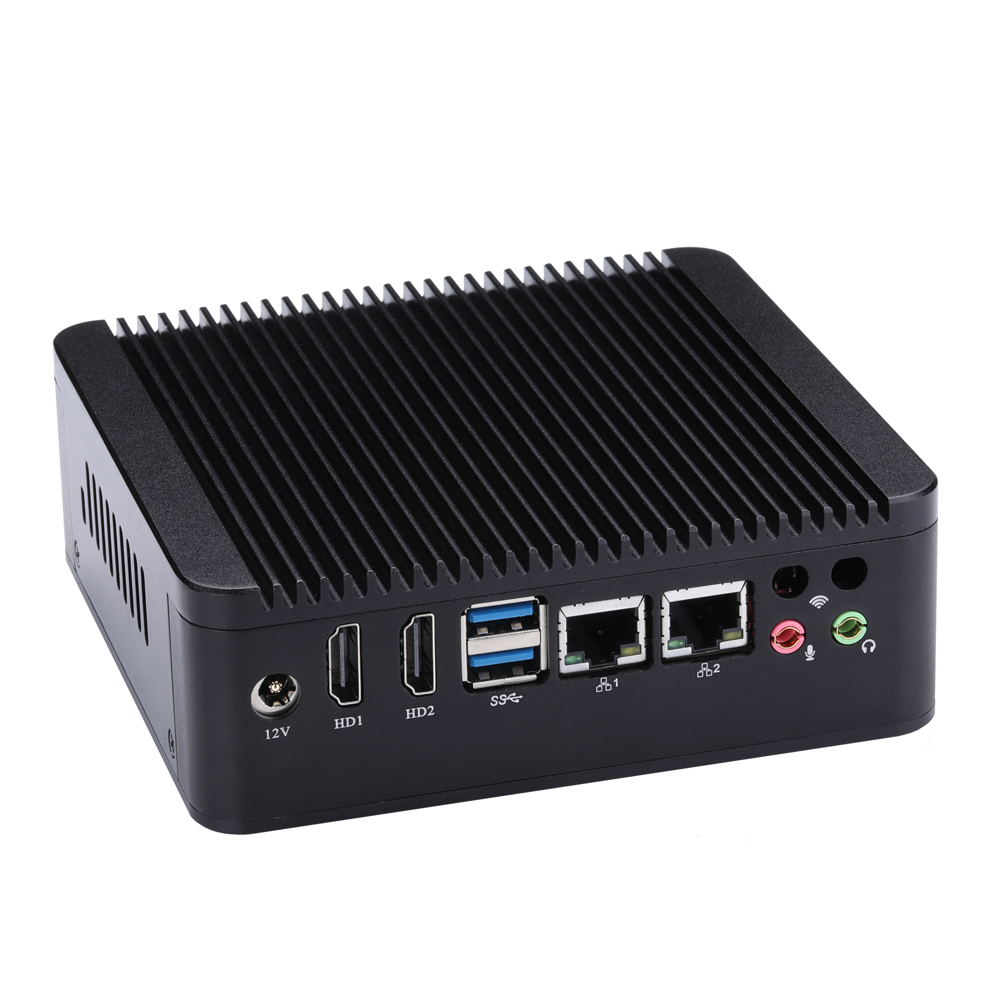

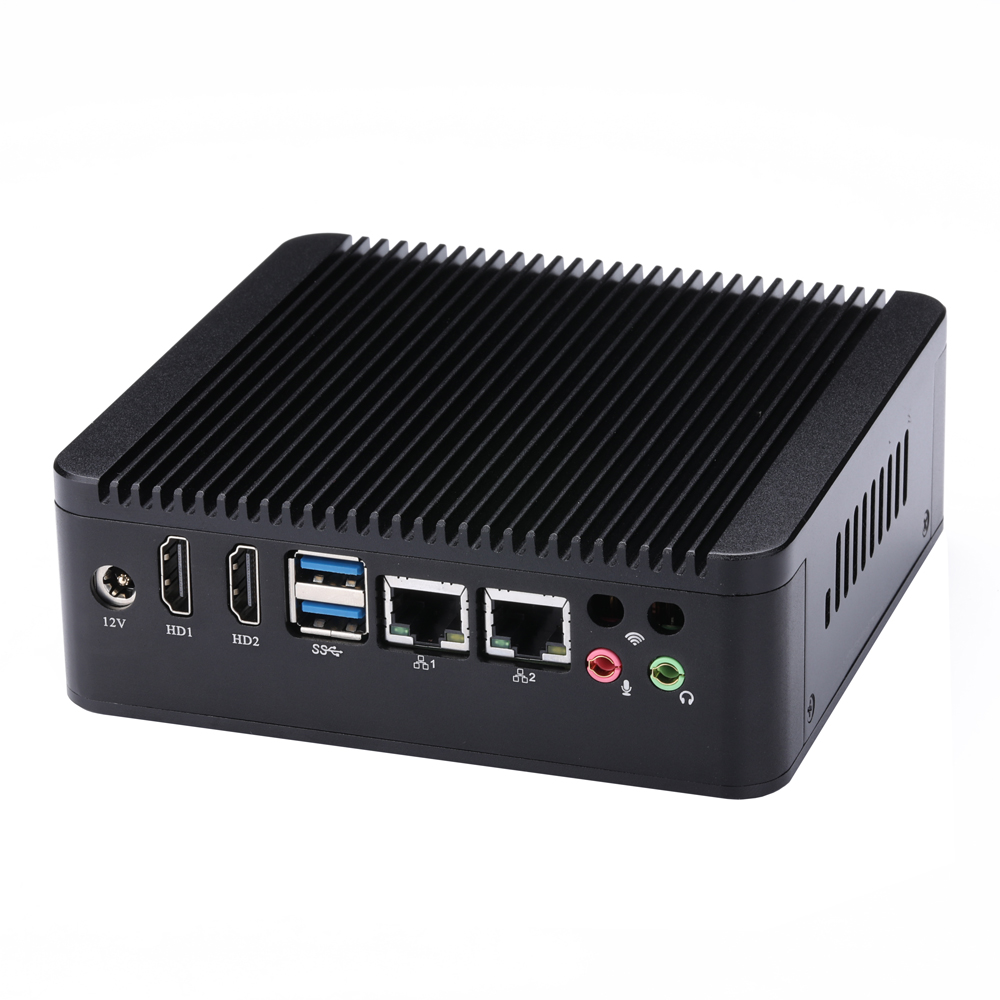

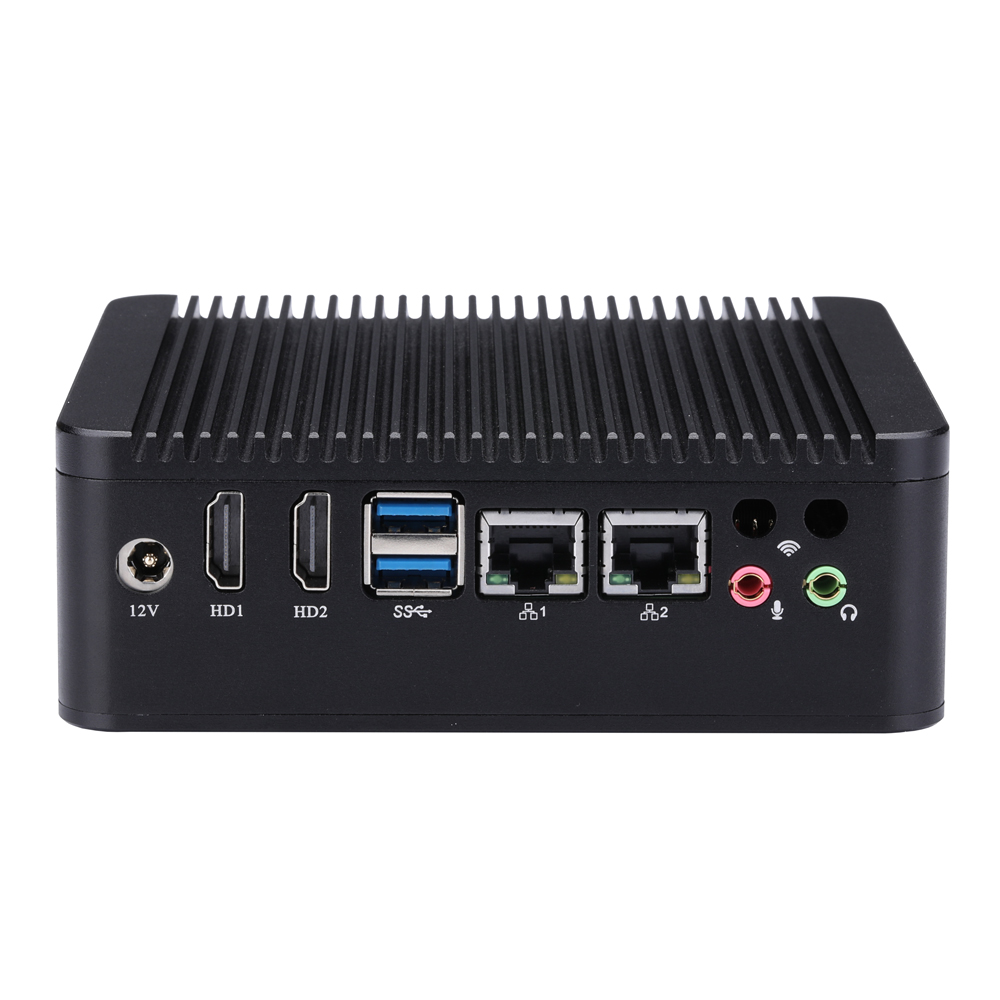

Rear I/O

Power1 × DC Jack
Video Output2 × HDMI
LAN2 × Realtek Gigabit LAN
USB2 × USB 3.0
Audio1 × Mic-in,1 × Line-out
Serial Port0

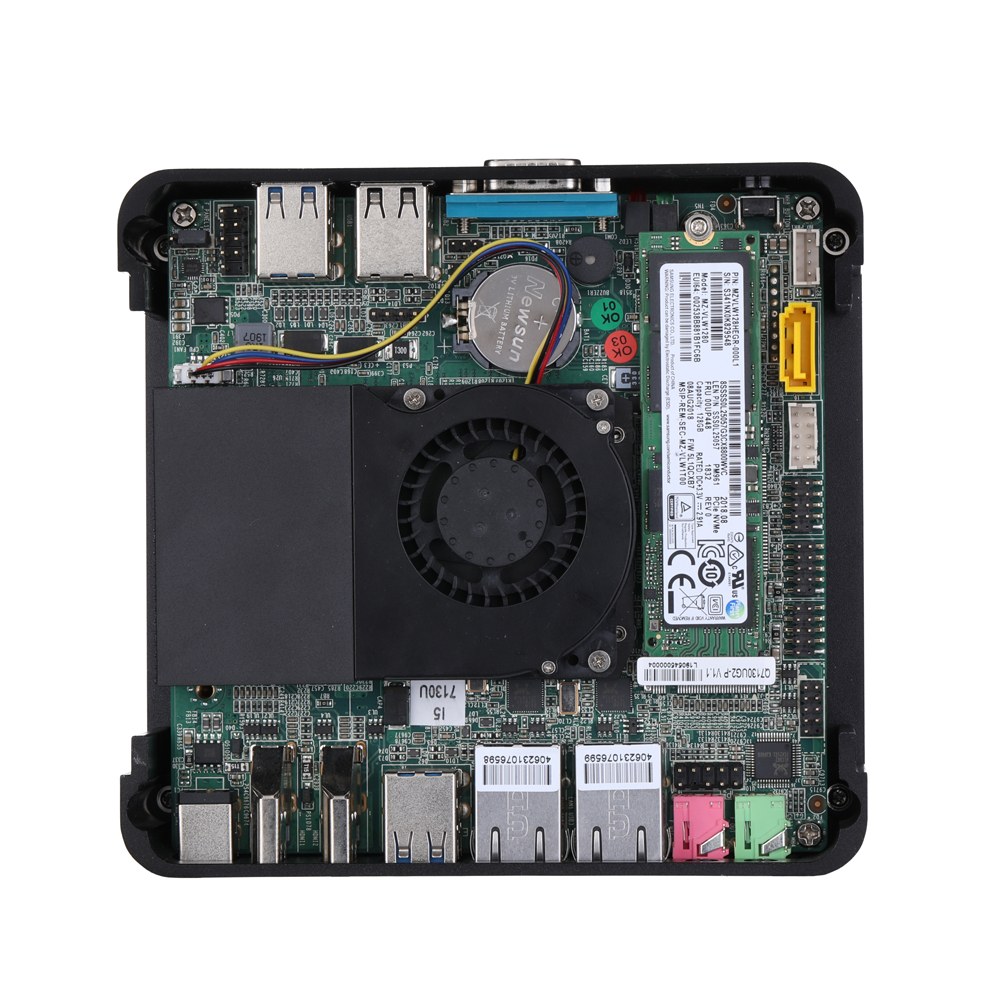

Storage

Type1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M.key, Type: 2280)

Expansion

M.21 × M.2 for SSD (M key, Type: 2280)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot0
AutoStart JumperYes,1 × 3Pin, Pitch 2.54mm
CMOS Clear JumperYes,1 × 3Pin, Pitch 2.0mm
VGA0
GPIO1,2 × 5Pin, Pitch 2.0mm
RS-4850

Power

Power Adapter12V 4A
DC Jack5.5mm, 2.5mm

Environmental

Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%

Mechanical

MaterialAluminium Alloy
Dimension134 × 127 × 46mm
Weight0.70kg
MountingVESA Mounting Bracket
Packaging Dimension261 × 218 × 75mm
Kensington LockSupport
Cooling ModeWith Fan

OS Support

OSWindows 10, Linux Windows 7 (O nly for 6th Gen Skylake)

Package Contents

  • Mini PC × 1
  • Power Adapter × 1
  • AC Power Cable × 1
  • VESA Mount × 1
  • SATA Combo Cable × 1
  • Screw Kit × 1

* Actual package contents may vary. Subject to change without notice.

Order & Specification Selection

Ordering CodeLegacy ModelCode NameProcessor TypeProcessor NumberCores / ThreadsFrequencyCacheGraphicsTDPDatasheet
Q30611S-S02 Q510S Skylake Celeron 3855U 2 / 2 1.6GHz 2M Intel HD 510 15W
Q30612S-S02 Q520S Skylake Celeron 3955U 2 / 2 2.0GHz 2M Intel HD 510 15W
Q30631S-S02 Q530S Skylake Core i3 6100U 2 / 4 2.3GHz 3M Intel HD 520 15W
Q30651S-S02 Q550S Skylake Core i5 6200U 2 / 4 2.3GHz ~ 2.8GHz 3M Intel HD 520 15W
Q30671S-S02 Q570S Skylake Core i7 6500U 2 / 4 2.5GHz ~ 3.1GHz 4M Intel HD 520 15W
Q30711S-S02 Q515S Kaby Lake Celeron 3865U 2 / 2 1.8GHz 2M Intel HD 610 15W
Q30712S-S02 Q525S Kaby Lake Celeron 3965U 2 / 2 2.2GHz 2M Intel HD 610 15W
Q30731S-S02 Q535S Kaby Lake Core i3 7100U 2 / 4 2.4GHz 3M Intel HD 620 15W
Q30751S-S02 Q555S Kaby Lake Core i5 7200U 2 / 4 2.5GHz ~ 3.1GHz 3M Intel HD 620 15W
Q30771S-S02 Q575S Kaby Lake Core i7 7500U 2 / 4 2.7GHz ~ 3.5GHz 4M Intel HD 620 15W
