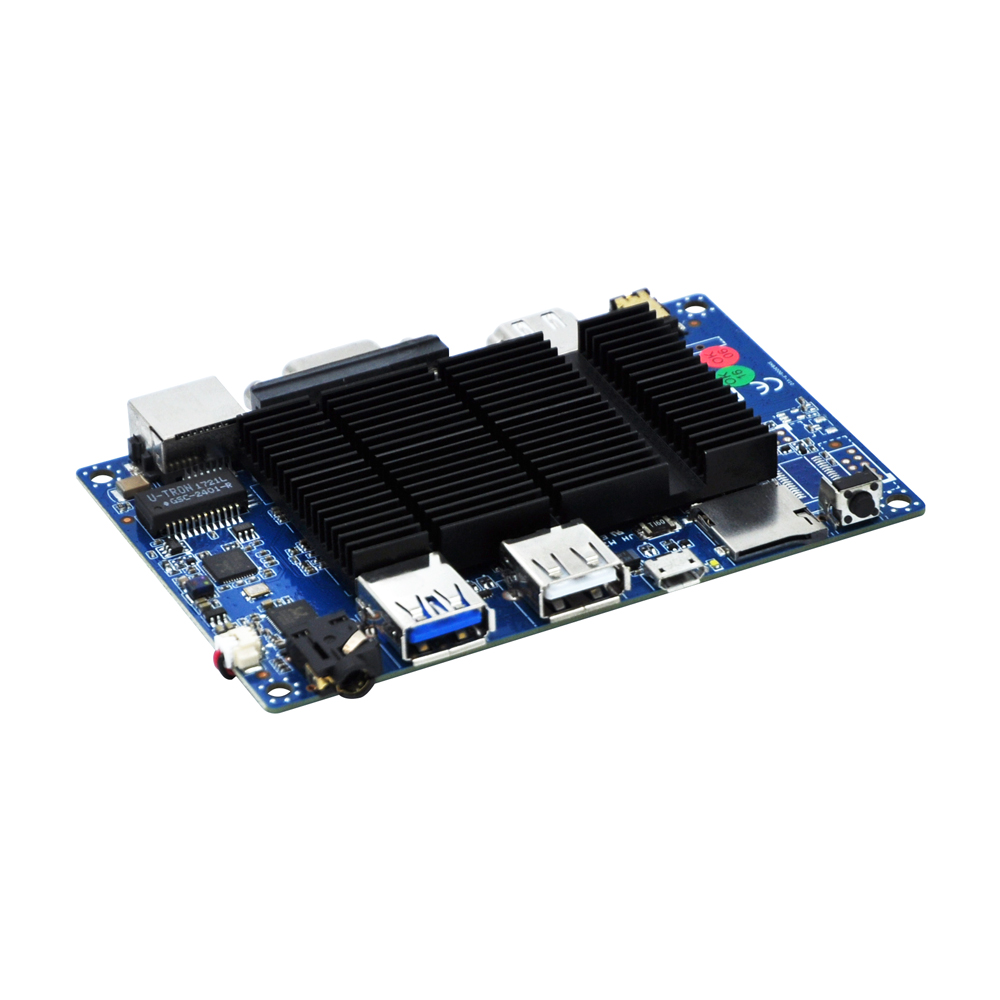

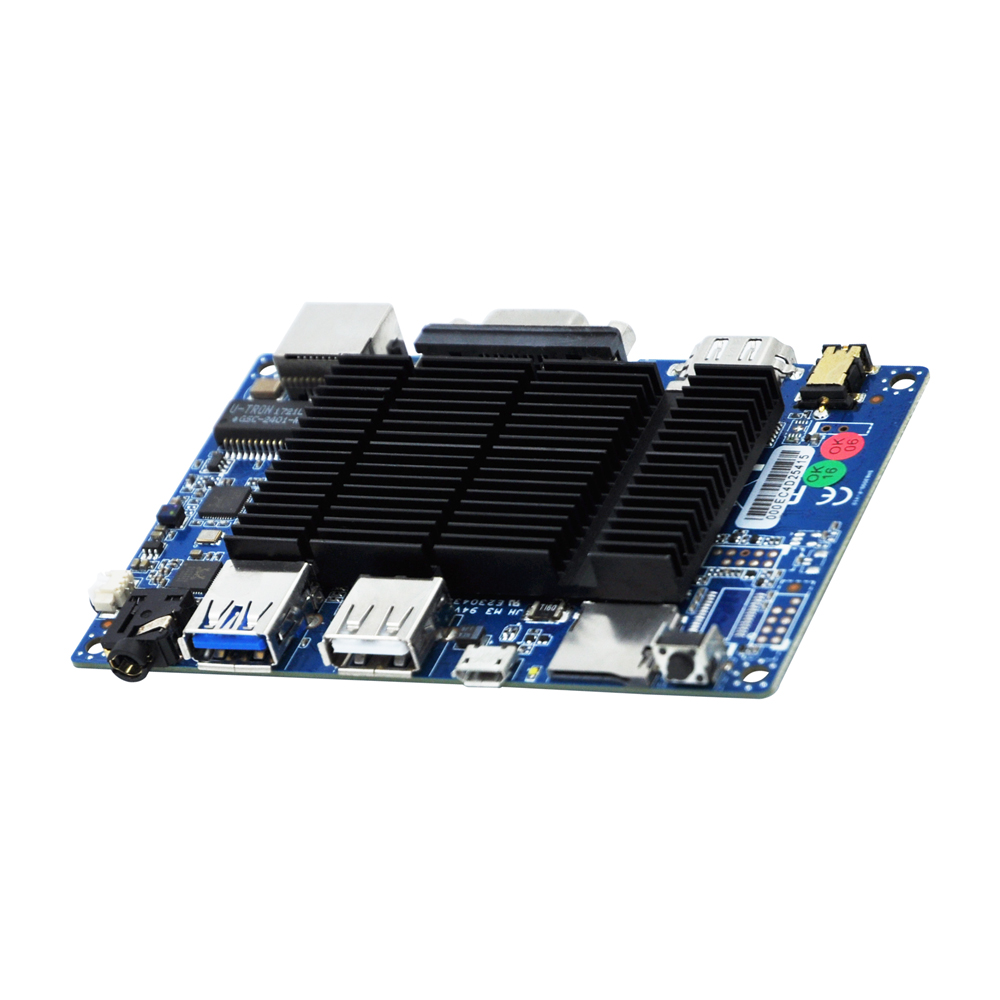

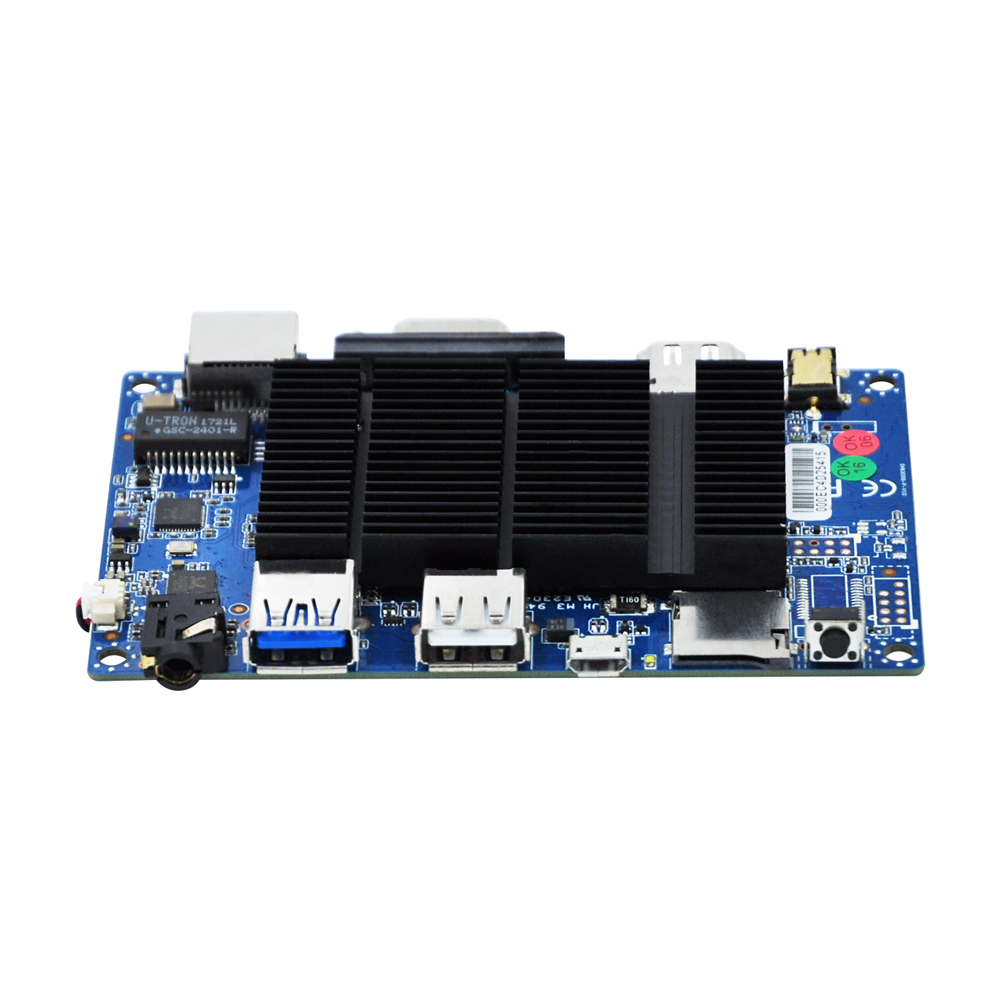

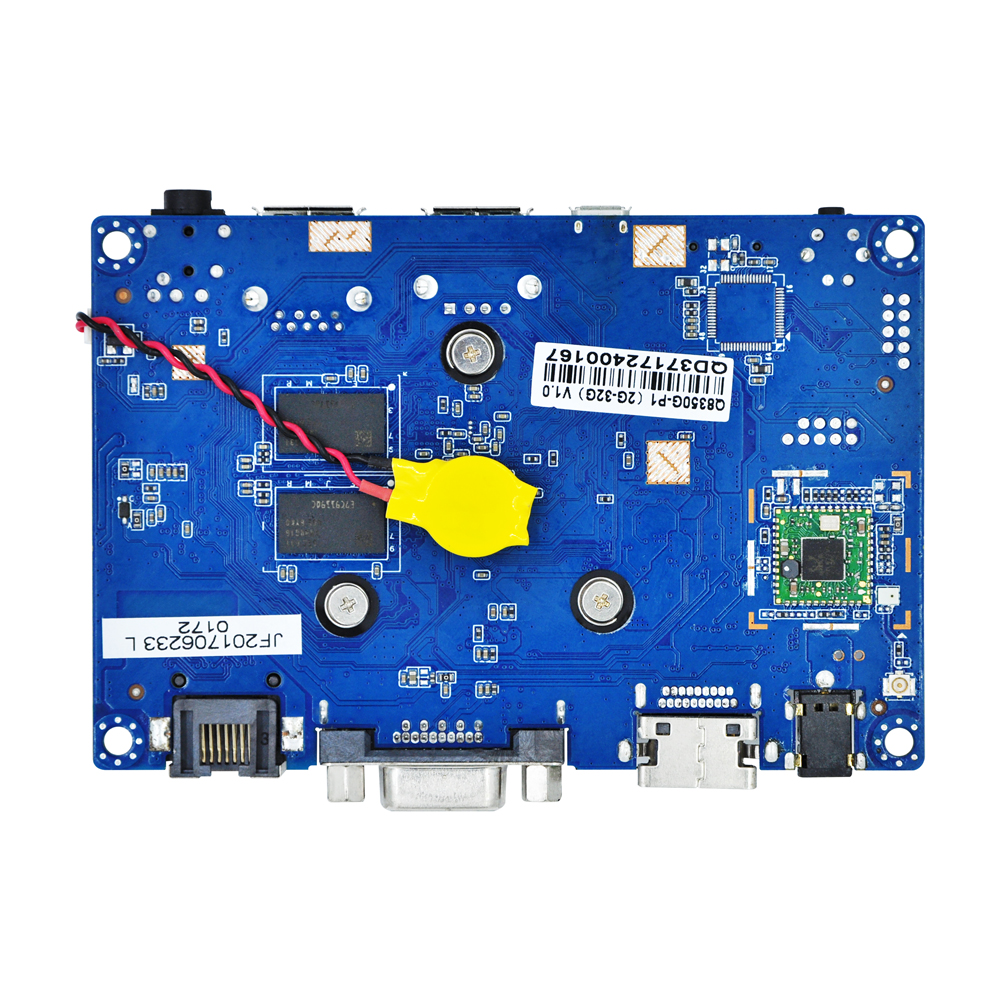

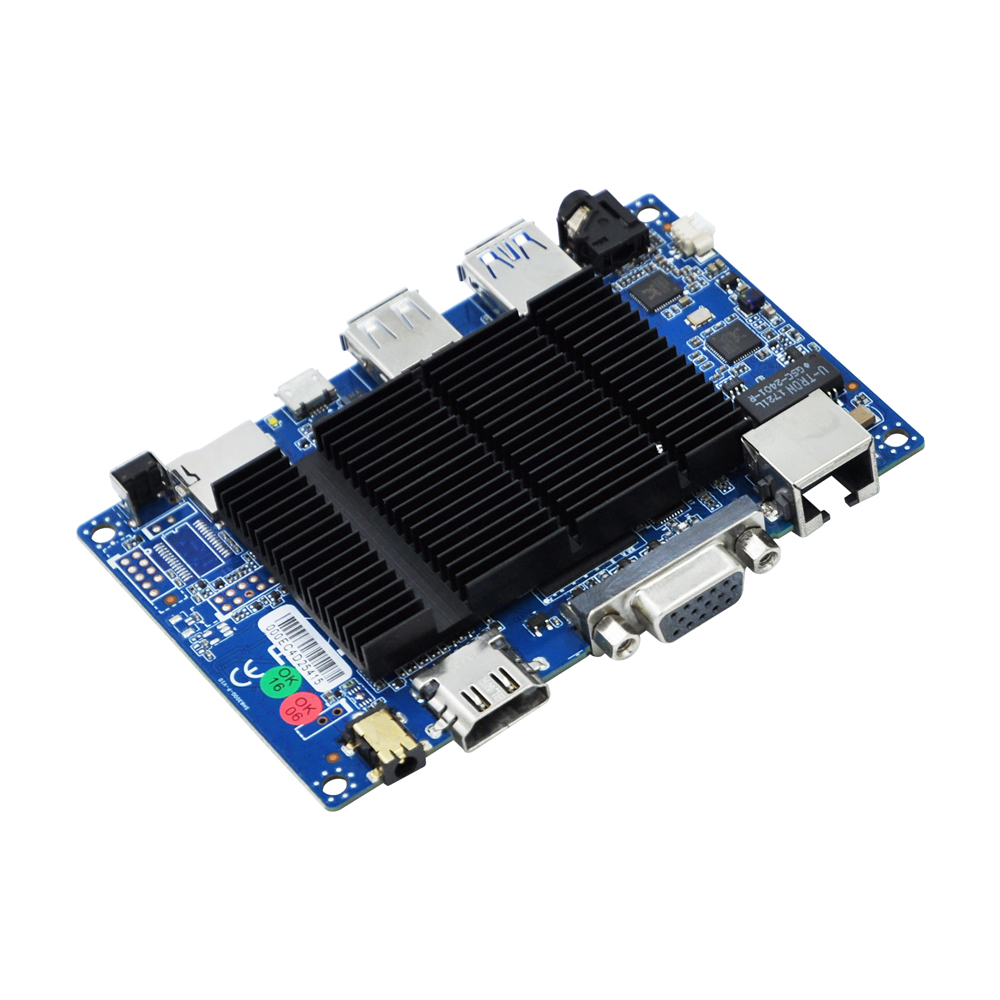

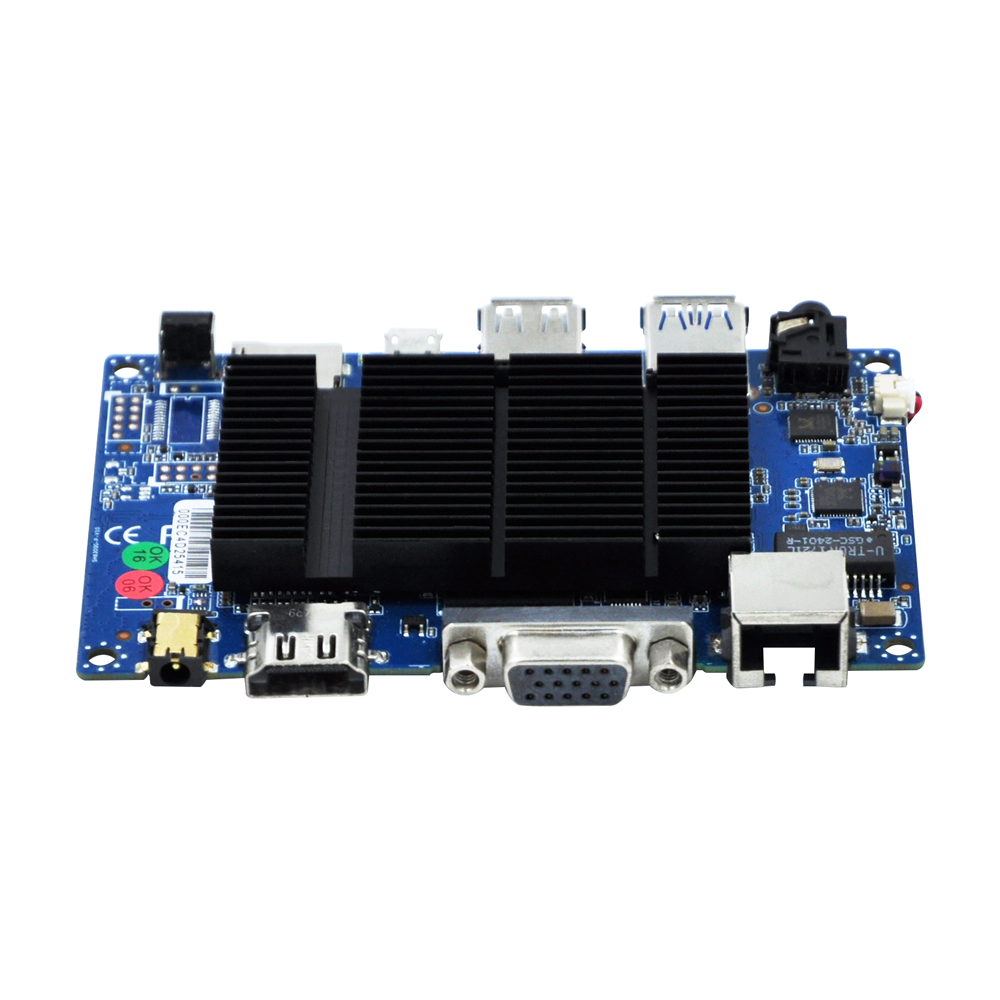

Motherboard Q8350G-P Series

Name: Motherboard Q8350G-P Series
Brand: Qotom
SKU: Q8350G-P

Model: Q8350G-P

Total LAN1

LAN Speed1G RJ45

Key Specs

CPU: Cherry Trail
Memory: Integrated · Max Integrated
LAN: 1
Board Size: 105x70

Send Inquiry

Q8350G-P Intel Cherry Trail ATOM Z8350

Main Features

Intel Atom X5-Z8350 Cherry Trail Processor
Intel HD Graphics
1 × VGA, 1 × HDMI
1 × Micro USB, 1x USB 2.0, 1 × USB 3.0
1 × Integrated Wi-Fi & Bluetooth
1 × Realtek RTL8111F LAN

Related Products

Motherboard MB2J113-0100 Series

MB2J113-0100

Motherboard MB2J213-0100 Series

MB2J213-0100

Motherboard MB2J217-0300 Series

MB2J217-0300

Motherboard MB1J124-0500 Series

MB1J124-0500

Motherboard MB2U113-0300 Series

MB2U113-0300

Motherboard MB2U213-0300 Series

MB2U213-0300

CPU	Intel Cherry T rail Processor Atom Z8350 Processor, 2W
Chipset	By CPU
Dimension	105 × 70mm
Core Number	4
Max. Speed	1.44GHz, up to 1.92GHz
L2 Cache	2M
BIOS	UEFI

Technology	DDR3L 1333/1600MHz SDRAM
Max.	2GB, Integrated,4GB (Option)
Socket	0

Controller	Intel HD Graphics
VRAM	Shared Memory
VGA	1
LVDS	0
HDMI	1
Multi Display	Yes

Interface	10/100/1000Mbps
Controller	1 × Realtek RTL8111F LAN
Connector	1 × RJ-45
Wi-Fi	Realtek RTL8723BS
Bluetooth	1, Bluetooth 4.0

Power Button	1
LED	1
USB	1 × USB 2.0,1 × USB 3.0, 1 × Micro USB
TF Card Slot	1
Audio	1 (Mic-in, Line-out)

Mini PC Series

Motherboard Series

NAS Storage Series

OPS Series

Panel PC Series

Accessories

Motherboard Q8350G-P Series

Key Specs

Main Features

Processor System

Memory

Graphics

Ethernet

Audio

Front I/O

Rear I/O

Storage

Internal Connector

Environmental

Accessories

OS Support

Package Contents

Order & Specification Selection

BIOS & Firmware

Driver Downloads

Related Products

VGA	0
Serial Port	0
SATA	0
SATA PWR Connector	0
mSATA	0
Mini PCIe	0
SIM Slot	0
AutoStart Jumper	0
GPIO Header	0
USB Header	0
Speakers Header	0
Front Panel Header	0
Power Header	0
Input PWR	5V3A DC in, 3.5mm/1.35mm
